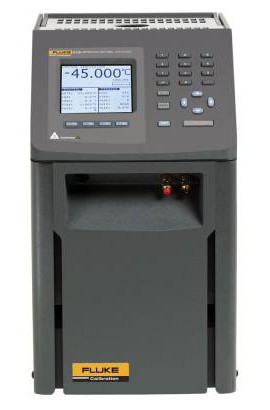

Fluke 9170-D-156 Field Metrology Well with D Insert (Model 9170-INSD), -45 to 140°C

Model: 9170-D-156

Intended for pharmaceutical applications and other applications where very low temperatures are present, this field metrology well reaches -45°C in normal room conditions. The metrology well includes a D insert for flexibility.

Add In-House ISO Certified Calibration add to your 9170-D-156

$17,434.00 CAD

2 to 3 Weeks
Need a quote?

Fluke 9170-D-156 Offers

Accurate enough for lab use, and rugged and portable enough to take anywhere.


  • Best-performing industrial heat sources (accuracy, stability, uniformity) in the world
  • Immersion depth to 8in (203mm)
  • Optional ITS-90 reference input reads PRTs to ±0.006°C
  • Temperature range from -49 to 1,292°F (-45 to 700°C)

Fluke 9170-D-156 Specifications

Range (at 23°C Ambient) -49 to 284°F (-45 to 140°C)
Display Accuracy ±0.1°C (full range)
Stability ±0.005°C (full range)
Well Depth 6.3in (160mm)
Display LCD, °C or °F (user-selectable)
Size (HxWxD) 14.4 x 8 x 12.7in (366 x 203 x 323mm)
Weight 31.5lbs (14.2kg)
Power 115VAC (±10%), or 230VAC (±10%), 50/60Hz, 550W
Computer Interface RS-232
Traceable Calibration Data at -45°C, 0°C, 50°C, 100°C and 140°C

What's included with the Fluke 9170-D-156

  • Field Metrology Well
  • 9170-INSD Insert "D" 9170


Click on a category to view a selection of compatible accessories with the Fluke 9170-D-156 Field Metrology Well with D Insert (Model 9170-INSD), -45 to 140°C.

Fluke D Insert (Model 9170-INSD) for 9170 Metrology Wells, Aluminum, Metric Comparison Holes 9170-INSD
Add this D insert to your existing 9170 metrology well. The insert is crafted from aluminum and has metric comparison holes.
$621.00 CAD

was $690.00

Learn More

Fluke 9170-CASE Carrying Case for 9170-3 Metrology Wells 9170-CASE
Safely carry your 9170-3 metrology well using this case, which is constructed with a foam-lined interior for added protection and recessed steel handles to aid transport.
$1,272.60 CAD

was $1,414.00

Learn More

Fluke 9170-DCAS Transportation Case with Wheels for 9170-3 Metrology Wells 9170-DCAS
Compatible with 9170-3 metrology wells, this wheeled transit case has a high-impact plastic exterior and a foam-lined interior to help keep your unit safe. The built-in wheels simplify transport.
$2,051.00 CAD

Learn More
