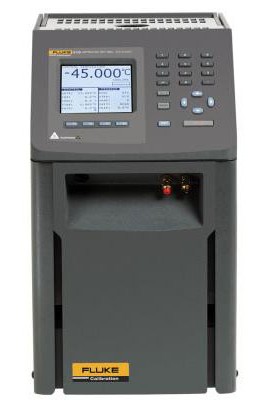

Fluke 9170-DW-156 Field Metrology Well (No Insert), -45 to 140°C

Model: 9170-DW-156

Intended for pharmaceutical applications and other applications where very low temperatures are present, this field metrology well reaches -45°C in normal room conditions. The metrology well comes without an insert.

Add In-House ISO Certified Calibration add to your 9170-DW-156


$16,742.00 CAD

Availability:
2 to 3 Weeks
Need a quote?




Fluke 9170-DW-156 Offers

Accurate enough for lab use, and rugged and portable enough to take anywhere.

Features

  • Best-performing industrial heat sources (accuracy, stability, uniformity) in the world
  • Immersion depth to 8in (203mm)
  • Optional ITS-90 reference input reads PRTs to ±0.006°C
  • Temperature range from -49 to 1,292°F (-45 to 700°C)

Fluke 9170-DW-156 Specifications

Range (at 23°C Ambient) -49 to 284°F (-45 to 140°C)
Display Accuracy ±0.1°C (full range)
Stability ±0.005°C (full range)
Well Depth 6.3in (160mm)
Display LCD, °C or °F (user-selectable)
Size (HxWxD) 14.4 x 8 x 12.7in (366 x 203 x 323mm)
Weight 31.5lbs (14.2kg)
Power 115VAC (±10%), or 230VAC (±10%), 50/60Hz, 550W
Computer Interface RS-232
Traceable Calibration Data at -45°C, 0°C, 50°C, 100°C and 140°C

What's included with the Fluke 9170-DW-156

  • Fluke 9170-DW-156 Field Metrology Well (No Insert), -45 to 140°C
  • Accessories

    Click on a category to view a selection of compatible accessories with the Fluke 9170-DW-156 Field Metrology Well (No Insert), -45 to 140°C.

    Fluke Z Insert (Model 9170-INSZ) for 9170 Metrology Wells, Aluminum, Blank 9170-INSZ
    Add this Z insert to your existing 9170 metrology well. The insert is crafted from aluminum.
    $523.80 CAD

    was $582.00


    Learn More

    Fluke A Insert (Model 9170-INSA) for 9170 Metrology Wells, Aluminum, Misc Holes 9170-INSA
    Add this A insert to your existing 9170 metrology well. The insert is crafted from aluminum and has misc holes.
    $621.00 CAD

    was $690.00


    Learn More

    Fluke B Insert (Model 9170-INSB) for 9170 Metrology Wells, Aluminum, Misc Holes 9170-INSB
    Add this B insert to your existing 9170 metrology well. The insert is crafted from aluminum and has misc holes.
    $621.00 CAD

    was $690.00


    Learn More

    Fluke C Insert (Model 9170-INSC) for 9170 Metrology Wells, Aluminum, 0.25in Holes 9170-INSC
    Add this C insert to your existing 9170 metrology well. The insert is crafted from aluminum and has 0.25in holes.
    $621.00 CAD

    was $690.00


    Learn More

    Fluke D Insert (Model 9170-INSD) for 9170 Metrology Wells, Aluminum, Metric Comparison Holes 9170-INSD
    Add this D insert to your existing 9170 metrology well. The insert is crafted from aluminum and has metric comparison holes.
    $621.00 CAD

    was $690.00


    Learn More

    Fluke E Insert (Model 9170-INSE) for 9170 Metrology Wells, Aluminum, Misc Metric Holes with 0.25in Ref Hole 9170-INSE
    Add this E insert to your existing 9170 metrology well. The insert is crafted from aluminum and has misc metric holes with a 0.25in ref hole.
    $621.00 CAD

    was $690.00


    Learn More

    Fluke F Insert (Model 9170-INSF) for 9170 Metrology Wells, Aluminum, Metric Comparison Holes with 0.25in Ref Hole 9170-INSF
    Add this F insert to your existing 9170 metrology well. The insert is crafted from aluminum and has metric comparison holes with a 0.25in ref hole.
    $621.00 CAD

    was $690.00


    Learn More

    Fluke 9170-CASE Carrying Case for 9170-3 Metrology Wells 9170-CASE
    Safely carry your 9170-3 metrology well using this case, which is constructed with a foam-lined interior for added protection and recessed steel handles to aid transport.
    $1,272.60 CAD

    was $1,414.00


    Learn More

    Fluke 9170-DCAS Transportation Case with Wheels for 9170-3 Metrology Wells 9170-DCAS
    Compatible with 9170-3 metrology wells, this wheeled transit case has a high-impact plastic exterior and a foam-lined interior to help keep your unit safe. The built-in wheels simplify transport.
    $2,051.00 CAD

    Learn More
