Fluke 9170-E-R-156 Field Metrology Well with E Insert (Model 9170-INSE) and Built-In Reference, -45 to 140°C-
Downloads: datasheet manual

Ask an Expert

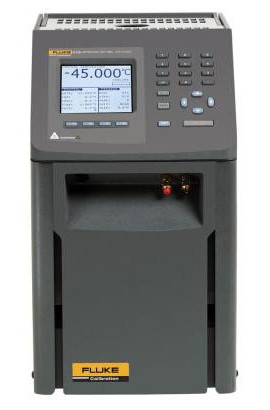

Fluke 9170-E-R-156 Field Metrology Well with E Insert (Model 9170-INSE) and Built-In Reference, -45 to 140°C

Model: 9170-E-R-156

Intended for pharmaceutical applications and other applications where very low temperatures are present, this field metrology well reaches -45°C in normal room conditions. The metrology well includes an E insert for flexibility and has a built-in reference.

Traceable Calibration Certificate for your add 9170-E-R-156

$24,997.00 CAD

Availability:
2 to 3 Weeks


Fluke 9170-E-R-156 Offers

Accurate enough for lab use, and rugged and portable enough to take anywhere.

Features

  • Best-performing industrial heat sources (accuracy, stability, uniformity) in the world
  • Immersion depth to 8in (203mm)
  • Optional ITS-90 reference input reads PRTs to ±0.006°C
  • Temperature range from -49 to 1,292°F (-45 to 700°C)

Fluke 9170-E-R-156 Specifications

Temperature Range -328 to 1,764°F (-200 to 962°C)
Display Accuracy ±0.1°C (full range)
Stability ±0.005°C (full range)
Well Depth 6.3in (160mm)
Display LCD, °C or °F (user-selectable)
Size (HxWxD) 14.4 x 8 x 12.7in (366 x 203 x 323mm)
Weight 31.5lbs (14.2kg)
Power 115VAC (±10%), or 230VAC (±10%), 50/60Hz, 550W
Computer Interface RS-232
Traceable Calibration Data at -45°C, 0°C, 50°C, 100°C and 140°C
Click here for complete specifications on the Fluke 9170-E-R-156

What's included with the Fluke 9170-E-R-156

  • Field Metrology Well
  • 9170-INSE Insert "E" 9170
  • Built-In Reference

Accessories

Click on a category to view a selection of compatible accessories with the Fluke 9170-E-R-156 Field Metrology Well with E Insert (Model 9170-INSE) and Built-In Reference, -45 to 140°C.

Fluke E Insert (Model 9170-INSE) for 9170 Metrology Wells, Aluminum, Misc Metric Holes with 0.25in Ref Hole 9170-INSE
Add this E insert to your existing 9170 metrology well. The insert is crafted from aluminum and has misc metric holes with a 0.25in ref hole.
$690.31 CAD

was $847.00


Learn More
Fluke 9170-CASE Carrying Case for 9170-3 Metrology Wells 9170-CASE
Safely carry your 9170-3 metrology well using this case, which is constructed with a foam-lined interior for added protection and recessed steel handles to aid transport.
$1,967.00 CAD

Learn More
Fluke 9170-DCAS Transportation Case with Wheels for 9170-3 Metrology Wells 9170-DCAS
Compatible with 9170-3 metrology wells, this wheeled transit case has a high-impact plastic exterior and a foam-lined interior to help keep your unit safe. The built-in wheels simplify transport.
$2,849.00 CAD

Learn More
Fluke TB25 Tool Bucket Organizer Bag, 5.2 gal TB25
Durable and rugged, this tool bucket organizer bag has a 5.2-gallon capacity that can be relied on to protect and safely carry a variety of test tools and accessories. With its waterproof hard bottom shell, this versatile organizer has a total of 28 pockets that can fit hand tools, DMMs, clamp meters, test probes, and more.
$127.78 CAD

was $156.79


Learn More
