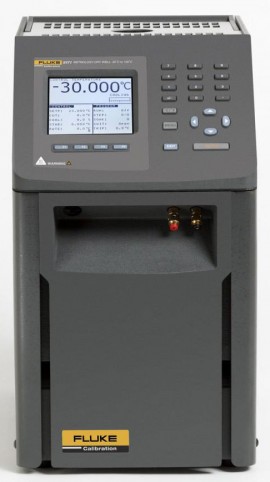

Fluke 9171-DW-R-156 Field Metrology Well (No Insert) with Built-In Reference, -30 to 155°C

Model: 9171-DW-R-156

Made to be rugged and portable, this field metrology well allows you to bring lab-quality performance into whatever field environment you're working in. The metrology well has an 8in (203mm) immersion depth for deeper needs, and it comes without an insert and has built-in reference.

Add In-House ISO Certified Calibration add to your 9171-DW-R-156


$17,230.00 CAD

Availability:
2 to 3 Weeks
Need a quote?




Fluke 9171-DW-R-156 Offers

Accurate enough for lab use, and rugged and portable enough to take anywhere.

Features

  • Best-performing industrial heat sources (accuracy, stability, uniformity) in the world
  • Immersion depth to 8in (203mm)
  • Optional ITS-90 reference input reads PRTs to ±0.006°C
  • Temperature range from -49 to 1,292°F (-45 to 700°C)

Fluke 9171-DW-R-156 Specifications

Range (at 23°C Ambient) -22 to 311°F (-30 to 155°C)
Display Accuracy ±0.1°C (full range)
Stability ±0.005°C (full range)
Well Depth 8in (203mm)
Display LCD, °C or °F (user-selectable)
Size (HxWxD) 14.4 x 8 x 12.7in (366 x 203 x 323mm)
Weight 33lbs (15kg)
Power 115VAC (±10%), or 230VAC (±10%), 50/60Hz, 550W
Computer Interface RS-232
Traceable Calibration Data at -30°C, 0°C, 50°C, 100°C and 155°C

What's included with the Fluke 9171-DW-R-156

  • Field Metrology Well
  • Built-In Reference

Accessories

Click on a category to view a selection of compatible accessories with the Fluke 9171-DW-R-156 Field Metrology Well (No Insert) with Built-In Reference, -30 to 155°C.

Fluke Z Insert (Model 9171-INSZ) for 9171 Metrology Wells, Aluminum, Blank 9171-INSZ
Featuring an aluminum construction, this Z insert works with 9171 metrology wells.
$545.40 CAD

was $606.00


Learn More

Fluke A Insert (Model 9171-INSA) for 9171 Metrology Wells, Aluminum, Misc Holes 9171-INSA
Featuring misc holes and an aluminum construction, this A insert works with 9171 metrology wells.
$670.50 CAD

was $745.00


Learn More

Fluke B Insert (Model 9171-INSB) for 9171 Metrology Wells, Aluminum, Comparison Holes 9171-INSB
Featuring comparison holes and an aluminum construction, this B insert works with 9171 metrology wells.
$670.50 CAD

was $745.00


Learn More

Fluke C Insert (Model 9171-INSC) for 9171 Metrology Wells, Aluminum, 0.25in Holes 9171-INSC
Featuring 0.25in holes and an aluminum construction, this C insert works with 9171 metrology wells.
$670.50 CAD

was $745.00


Learn More

Fluke D Insert (Model 9171-INSD) for 9171 Metrology Wells, Aluminum, Metric Comparison Holes 9171-INSD
Featuring metric comparison holes and an aluminum construction, this D insert works with 9171 metrology wells.
$670.50 CAD

was $745.00


Learn More

Fluke E Insert (Model 9171-INSE) for 9171 Metrology Wells, Aluminum, Misc Metric Holes with 0.25in Ref Hole 9171-INSE
Featuring misc metric holes with a 0.25in ref hole and an aluminum construction, this E insert works with 9171 metrology wells.
$670.50 CAD

was $745.00


Learn More

Fluke F Insert (Model 9171-INSF) for 9171 Metrology Wells, Aluminum, Metric Comparison Holes with 0.25in Ref Hole 9171-INSF
Featuring metric comparison holes with a 0.25in ref hole and an aluminum construction, this F insert works with 9171 metrology wells.
$670.50 CAD

was $745.00


Learn More

Fluke 9170-CASE Carrying Case for 9170-3 Metrology Wells 9170-CASE
Safely carry your 9170-3 metrology well using this case, which is constructed with a foam-lined interior for added protection and recessed steel handles to aid transport.
$1,272.60 CAD

was $1,414.00


Learn More

Fluke 9170-DCAS Transportation Case with Wheels for 9170-3 Metrology Wells 9170-DCAS
Compatible with 9170-3 metrology wells, this wheeled transit case has a high-impact plastic exterior and a foam-lined interior to help keep your unit safe. The built-in wheels simplify transport.
$2,051.00 CAD

Learn More
