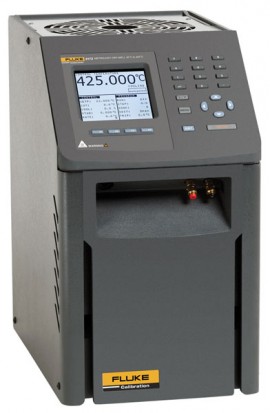

Fluke 9172-B-R-156 Field Metrology Well with B Insert (Model 9172-INSB) and Built-In Reference, 35 to 425°C

Model: 9172-B-R-156

Reduce stem conduction errors at high temperatures by using this field metrology well, which has 8in (203mm) of depth immersion. With exceptional accuracy to ±0.2°C at 425°C, this metrology well comes with a B insert and has built-in reference.

Add In-House ISO Certified Calibration add to your 9172-B-R-156


$14,293.00 CAD

Availability:
2 to 3 Weeks
Need a quote?




Fluke 9172-B-R-156 Offers

Accurate enough for lab use, and rugged and portable enough to take anywhere.

Features

  • Best-performing industrial heat sources (accuracy, stability, uniformity) in the world
  • Immersion depth to 8in (203mm)
  • Optional ITS-90 reference input reads PRTs to ±0.006°C
  • Temperature range from -49 to 1,292°F (-45 to 700°C)

Fluke 9172-B-R-156 Specifications

Range (at 23°C Ambient) 95 to 797°F (35 to 425°C)
Display Accuracy ±0.1°C: 35 to 100°C
±0.15°C: 100 to 225°C
±0.2°C: 225 to 425°C
Stability ±0.005°C: 35 to 100°C
±0.008°C: 100 to 225°C
±0.01°C: 225 to 425°C
Well Depth 8in (203mm)
Display LCD, °C or °F (user-selectable)
Size (H x W x D) 14.4 x 8 x 12.7in (366 x 203 x 323mm)
Weight 29lbs (13.2kg)
Power 115VAC (±10%), or 230VAC (±10%), 50/60Hz, 1,025W
Computer Interface RS-232
Traceable Calibration Data at 100°C, 150°C, 250°C, 350°C and 425°C

What's included with the Fluke 9172-B-R-156

  • Field Metrology Well
  • 9172-INSB Insert "B" 9172
  • Built-In Reference

Accessories

Click on a category to view a selection of compatible accessories with the Fluke 9172-B-R-156 Field Metrology Well with B Insert (Model 9172-INSB) and Built-In Reference, 35 to 425°C.

Fluke B Insert (Model 9172-INSB) for 9172 Metrology Wells, Brass, Comparison Holes 9172-INSB
This brass B insert is made to fit a 9172 metrology well and equipped with comparison holes.
$1,082.70 CAD

was $1,203.00


Learn More

Fluke 9170-CASE Carrying Case for 9170-3 Metrology Wells 9170-CASE
Safely carry your 9170-3 metrology well using this case, which is constructed with a foam-lined interior for added protection and recessed steel handles to aid transport.
$1,272.60 CAD

was $1,414.00


Learn More

Fluke 9170-DCAS Transportation Case with Wheels for 9170-3 Metrology Wells 9170-DCAS
Compatible with 9170-3 metrology wells, this wheeled transit case has a high-impact plastic exterior and a foam-lined interior to help keep your unit safe. The built-in wheels simplify transport.
$2,051.00 CAD

Learn More
