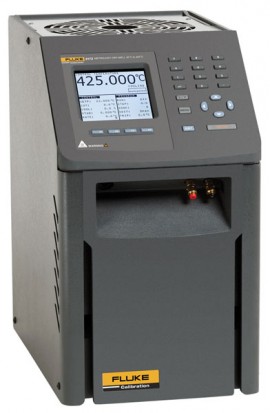

Reduce stem conduction errors at high temperatures by using this field metrology well, which has 8in (203mm) of depth immersion. With exceptional accuracy to ±0.2°C at 425°C, this metrology well comes with an E insert.
Accurate enough for lab use, and rugged and portable enough to take anywhere.
|Range (at 23°C Ambient)||95 to 797°F (35 to 425°C)|
|Display Accuracy||±0.1°C: 35 to 100°C
±0.15°C: 100 to 225°C
±0.2°C: 225 to 425°C
|Stability||±0.005°C: 35 to 100°C
±0.008°C: 100 to 225°C
±0.01°C: 225 to 425°C
|Well Depth||8in (203mm)|
|Display||LCD, °C or °F (user-selectable)|
|Size (H x W x D)||14.4 x 8 x 12.7in (366 x 203 x 323mm)|
|Power||115VAC (±10%), or 230VAC (±10%), 50/60Hz, 1,025W|
|Traceable Calibration||Data at 100°C, 150°C, 250°C, 350°C and 425°C|
Click on a category to view a selection of compatible accessories with the Fluke 9172-E-156 Field Metrology Well with E Insert (Model 9172-INSE), 35 to 425°C.
