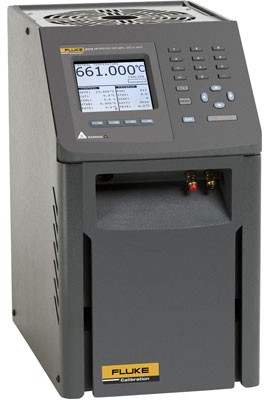

Fluke 9173-DW-156 Field Metrology Well (No Insert), 50 to 700°C

Model: 9173-DW-156

Featuring an 8in (203mm) immersion depth, plus a range from 50 to 700°C, this field metrology well delivers stable, uniform performance, working to help eliminate uncertainty budgets when calibrating thermometers at high temperatures. The metrology well comes without an insert.

Add In-House ISO Certified Calibration add to your 9173-DW-156


$13,631.00 CAD

Availability:
2 to 3 Weeks
Need a quote?




Fluke 9173-DW-156 Offers

Accurate enough for lab use, and rugged and portable enough to take anywhere.

Features

  • Best-performing industrial heat sources (accuracy, stability, uniformity) in the world
  • Immersion depth to 8in (203mm)
  • Optional ITS-90 reference input reads PRTs to ±0.006°C
  • Temperature range from -49 to 1,292°F (-45 to 700°C)

Fluke 9173-DW-156 Specifications

Range (at 23°C Ambient) 122 to 1,292°F (50 to 700°C) (calibrated to 660°C; reference thermometer recommended at higher temperatures)
Display Accuracy ±0.2°C: 50 to 425°C
±0.25°C: 425 to 660°C
Stability ±0.005°C: 50 to 100°C
±0.01°C: 100 to 425°C
±0.03°C: 425 to 700°C
Well Depth 8in (203mm)
Display LCD, °C or °F (user-selectable)
Size (H x W x D) 14.4 x 8 x 12.7in (366 x 203 x 323mm)
Weight 33lbs (15kg)
Power 115VAC (±10%), or 230 VAC (±10%), 50/60Hz, 1,025W
Computer Interface RS-232
Traceable Calibration Data at 100°C, 200°C, 350°C, 500°C and 660°C

What's included with the Fluke 9173-DW-156

  • Fluke 9173-DW-156 Field Metrology Well (No Insert), 50 to 700°C
  • Accessories

    Click on a category to view a selection of compatible accessories with the Fluke 9173-DW-156 Field Metrology Well (No Insert), 50 to 700°C.

    Fluke Z Insert (Model 9173-INSZ) for 9173 Metrology Wells, Aluminum-Bronze, Blank 9173-INSZ
    With an aluminum-bronze finish, this Z insert fits 9173 metrology wells.
    $865.80 CAD

    was $962.00


    Learn More

    Fluke A Insert (Model 9173-INSA) for 9173 Metrology Wells, Aluminum-Bronze, Misc Holes 9173-INSA
    With misc holes and an aluminum-bronze finish, this A insert fits 9173 metrology wells.
    $1,235.70 CAD

    was $1,373.00


    Learn More

    Fluke B Insert (Model 9173-INSB) for 9173 Metrology Wells, Aluminum-Bronze, Comparison Holes 9173-INSB
    With comparison holes and an aluminum-bronze finish, this B insert fits 9173 metrology wells.
    $1,235.70 CAD

    was $1,373.00


    Learn More

    Fluke C Insert (Model 9173-INSC) for 9173 Metrology Wells, Aluminum-Bronze, 0.25in Holes 9173-INSC
    With 0.25in holes and an aluminum-bronze finish, this C insert fits 9173 metrology wells.
    $1,235.70 CAD

    was $1,373.00


    Learn More

    Fluke D Insert (Model 9173-INSD) for 9173 Metrology Wells, Aluminum-Bronze, Comparison Metric Holes 9173-INSD
    With comparison metric holes and an aluminum-bronze finish, this D insert fits 9173 metrology wells.
    $1,235.70 CAD

    was $1,373.00


    Learn More

    Fluke E Insert (Model 9173-INSE) for 9173 Metrology Wells, Aluminum-Bronze, Misc Metric Holes with 0.25in Ref Hole 9173-INSE
    With misc metric holes and a 0.25in ref hole, plus an aluminum-bronze finish, this E insert fits 9173 metrology wells.
    $1,235.70 CAD

    was $1,373.00


    Learn More

    Fluke F Insert (Model 9173-INSF) for 9173 Metrology Wells, Aluminum-Bronze, Metric Comparison Holes with 0.25in Ref Hole 9173-INSF
    With metric comparison holes and a 0.25in ref hole, plus an aluminum-bronze finish, this F insert fits 9173 metrology wells.
    $1,235.70 CAD

    was $1,373.00


    Learn More

    Fluke 9170-CASE Carrying Case for 9170-3 Metrology Wells 9170-CASE
    Safely carry your 9170-3 metrology well using this case, which is constructed with a foam-lined interior for added protection and recessed steel handles to aid transport.
    $1,272.60 CAD

    was $1,414.00


    Learn More

    Fluke 9170-DCAS Transportation Case with Wheels for 9170-3 Metrology Wells 9170-DCAS
    Compatible with 9170-3 metrology wells, this wheeled transit case has a high-impact plastic exterior and a foam-lined interior to help keep your unit safe. The built-in wheels simplify transport.
    $2,051.00 CAD

    Learn More
