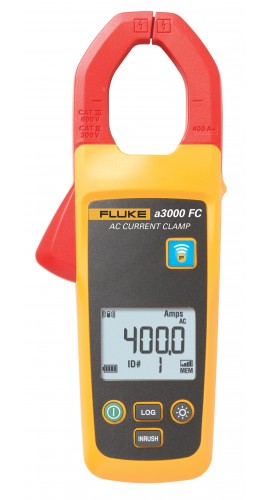

Fluke A3000 FC Wireless AC Current Clamp Module

Model: A3000FC

The A3000 FC Wireless Current Clamp Meter is a fully functional True-RMS current clamp meter that wirelessly relays AC measurements to any Fluke Connect system.

Add In-House ISO Certified Calibration to your A3000FC


$253.80 CAD

was $282.00

Availability:
1 to 2 Weeks
Need a quote?




Fluke Connect is the best way to stay in contact with your team without leaving the field.




Fluke a3000 FC Wireless AC Current Clamp Module

Fluke Connect enabled Clamp Meter Module

A fully functional True-RMS current clamp meter that wirelessly relays measurements to other Fluke Connect™ enabled master units.

This True RMS clamp meter is capable of taking measurements up to 400A AC, features an inrush function, and is capable of logging up to 65,000 readings. You'll be able to use the a3000 FC as a standalone unit or as part of the Fluke Connect suite of tools.

Fluke A3000-FC Specifications

Range 0.5 A to 400.0 A
Resolution 0.1 A
Accuracy 400.0 A: 2 % ± 5 digits (10 Hz to 100 Hz), 2.5 % ± 5 digits (100 Hz to 500 Hz)
Inrush Max displayed reading: 999.9A
Crest factor (50 Hz/60 Hz) 3 at 500 A, 2.5 at 600 A, 1.42 at 1000 A, add 2 % for C.F. > 2
LCD w/backlight 3½ digits
Log rate/interval 1 sec minimum/adjustable by PC
Battery type 2 AA, NEDA 15 A, IEC LR6/td>
Battery life 400 hours
Memory Record up to 65,000 readings
RF communications 2.4 GHZ ISM Band
RF communication range Open air, unobstructed: Up to 20 m
Obstructed, sheetrock wall: Up to 6.5 m
Obstructed, concrete wall or steel electrical enclosure: Up to 3.5 m
Operating temperature -10 °C to +50 °C
Storage temperature -40 °C to +60 °C
Temperature coefficient Add 0.1 x (specified accuracy)/°C (< 18 °C or > 28 °C)
Operating humidity 90% at 35 °C, 75 % at 40 °C, 45 % at 50 °C
Altitude Operating: 2,000 m
Storage: 12,000 m
EMC EN 61326-1:2006
Safety compliance IEC 61010-1, 600 V CAT III, 3rd edition Pollution Degree 2
Safety rating CAT III 600 V
Certifications CSA, CE, FCC: T68-FBLE IC: 6627A-FBLE
Ingress Protection (IP) rating IP30
Pollution Degree 2
Jaw opening 34 mm (1.33 in)
Size (HxWxD) 20.3 cm x 7.49 cm x 3.55 cm (8 in x 2.95 in x 1.4 in)
Weight .22 kg (8 oz)
Click here for complete specifications on the Fluke A3000FC

What's included with the Fluke A3000FC

  • Fluke A3000 FC Wireless AC Current Clamp Module
  • This product features Fluke Connect Technology

    See it. Save it. Share it. All the facts, right in the field.

    Fluke engineers have delivered an innovative mobile platform and tool that helps solve everyday problems, allowing you to instantly document measurements, retrieve historical data, and share live measurements with your team. All handled by the Android™ or iOS smart phone you already carry.

    Fluke Connect with ShareLive™ video call is the only wireless measurement system that lets you stay in contact with your entire team without leaving the field. The Fluke Connect mobile app is works with over 20 different Fluke products - the largest suite of connected test tools in the world.

    Make the best decisions faster than ever before by viewing temperature, mechanical, electrical and vibration measurements for each equipment asset in one place. Get started saving time and increasing your productivity.


    Fluke Connect Features:

    • TrendIt™ Graphs: Use graphing to show changes in measurements, allowing you to graph and show problems instantly.
    • EquipmentLog™ History: Access equipment history building a database of equipment health and baselines with cloud backup.
    • ShareLive™ Video Calls: Save, collaborate and share measurements instantly with your team anytime, from anywhere.
    • AutoRecord™ Measurements: Instantly save measurements to your phone with Cloud backup.
    • Fluke Cloud™ Storage: Securely access equipment records anywhere, anytime.

    Fluke Connect Benefits:

    • Maximize uptime
    • Minimize maintenance costs
    • Better assessments with accurate records
    • Higher efficiency with less walking around; no notebook and excel needed
    • Share troubleshooting knowledge live
    • Create and share helpful content in the field
    • Access to Fluke digital product manuals means no need to carry manuals in the field
    • Keep organized manually entered measurements
