Model: i100

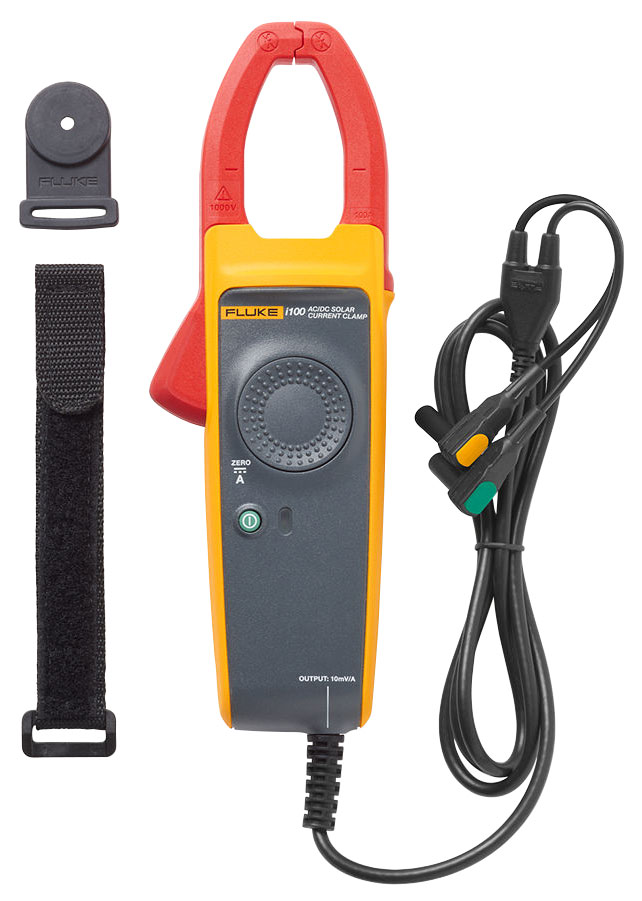

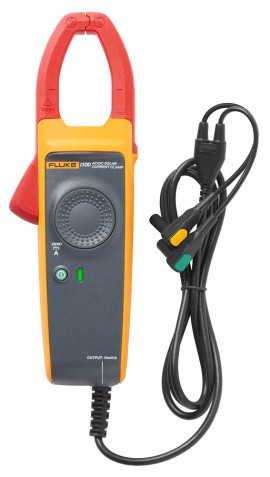

Compatible with the SMFT-1000 PV tester, this current clamp features a measuring range of 1 to 100 A AC/DC and comes with a magnet and strap.
| AC/DC Current | Display range: 0 to 100 A DC, 0 to 100 A AC TRMS Measuring range: 1 to 100 A DC, 1 to 100 A AC TRMS Resolution: 0.1 A Accuracy (DC/AC, 50/60 Hz): ±(5% + 2 digit) |
| AC/DC Power Measurement | Display range: 0 to 700 V AC, 0 to 1000 V DC, 0 to 100 A AC/DC, 0 to 100 kW/kVA Measuring range: 5 to 700 V AC, 5 to 1000 V DC, 1 to 100 A AC/DC, 5 to 100 kW/kVA Resolution: 0.1 V, 0.1 A, 1 kW/kVA Accuracy (DC/AC, 50/60 Hz): ±(2.5% + 2 digit), ±(6.5% + 3 digit), ±(10% + 4 digit) |
| Tolerances | Measuring range: 1 to 100 A DC or AC <1 kHz Output signal: 10 mV/A AC/DC Accuracy (DC/AC, 50/60 Hz): ±(1.5% + 0.1 A) |
| Safety | IEC 61010-2-032, Type D (for insulated conductors), 1000 V |
| Dimensions | 9.69 x 3.27 x 1.77" (246.1 x 83.1 x 44.9 mm) |
| Weight | 0.5 lbs (0.23 kg) |
