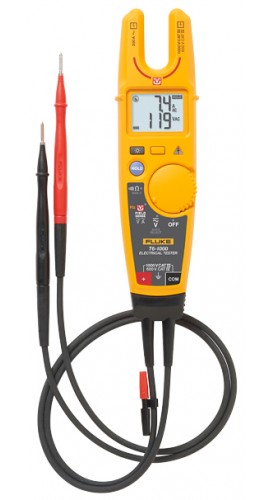

Fluke T6-1000 Electrical Tester, 1000 V AC

Model: T6-1000

Ideal for commercial and light industrial electricians, this tester measures voltage up to 1000 V AC through its open fork without any test lead contact to the live voltage. Additionally, this tool fits in your pocket and comes equipped with FieldSense technology, which detects an electrical field.

Add In-House ISO Certified Calibration to your Fluke T6-1000

$354.60 CAD

was $394.00

37 in Stock
Need a quote?

Work Safer with Fluke Products

Fluke T6-1000 Offers

Measure voltage … without test leads

Measure voltage up to 1000 V ac due to FieldSense technology, which easily and quickly takes measurements by sliding a conductor through the open fork. Additionally, without opening covers or removing wire nuts, on wires up to AWG 4/0 (120 mm2), carrying as much as 200 A which makes the jobs safer, faster and easier.


  • FieldSense technology for ac voltage, current and frequency measurement without making electrical contact to live voltage
  • Simultaneous voltage and current display shows all power supply measurements at a glance for efficient troubleshooting
  • 1 to 1000 V ac or dc
  • 0.1 to 200 A ac
  • Resistance 1 Ω to 100 kΩ
  • Frequency measurement 45 to 66 Hz
  • Works with wires up to AWG 4/0 (120 mm2) with a 0.7" (17.8 mm) jaw opening
  • Hold button temporarily freezes the reading for easy viewing
  • Easy to read display with backlight

Why use this electrical tester?

Electricians often work in boxes jammed with wires, where finding a safe metallic contact point can be a challenge. With this tester they can take measurements by sliding a single wire into the open fork.

How FieldSense works

FieldSense technology is truly a breakthrough in how voltage is measured. While other open fork testers detect a magnetic field to show ac current, FieldSense technology detects an electrical field. This field interacts with a reference signal created by the tester, creating a voltage value on the tester's display.

Tips: FieldSense technology

Do not hold or touch wire you are testing during a measurement. Use the black probe to make the ground connection if:

  • Wearing gloves or insulated footwear
  • Standing on an insulated ladder
  • Additional ground contact is required for the application

FieldSense measurement looks like this when probably grounded:

  • Display color turns green
  • Display shows a valid measurement >16 V rather than dashes or 0.0
  • Shows for measurement ≥30 V


  • Commercial and light industry

Fluke T6-1000 Specifications

FieldSense AC Voltage True RMS
Requires Test Leads No
Range 1000 V
Resolution 1 V
Accuracy ±(3% + 3 counts) 45 to 66 Hz
FieldSense AC Current True RMS
Requires Test Leads No
Range 200.0 A
Resolution 0.1 A
Accuracy ±(3% + 3 counts) 45 to 66 Hz
FieldSense Frequency (Hz)
Requires Test Leads No
Range 45 to 66 Hz
Resolution 1 Hz
Accuracy ±(1% + 2 counts)
Volts AC True RMS
Requires Test Leads Yes
Range 1000 V
Resolution 1 V
Accuracy ±(1.5% + 2 counts) 45 to 66 Hz
Volts DC
Requires Test Leads Yes
Range 1000 V
Resolution 1 V
Accuracy ±(1% + 2 counts)
Requires Test Leads Yes
Range 1000 V
2000 Ω
20 kΩ
100 kΩ
Resolution 1 V
1 Ω
0.01 kΩ
0.1 kΩ
Accuracy ±(1% + 2 counts)
Range 1000 V CAT III
600 V CAT IV
General Specifications
Calibration One year calibration cycle
Jaw Opening 0.7" (17.8 mm)
Operating Temperature 14 to 122°F (-10 to 50°C)
Storage Temperature -22 to 140°F (-30 to 60°C)
Operating Altitude 6562' (2000 m)
Storage Altitude 32,808' (10,000 m)
Relative Humidity 0 to 90%, 41 to 86°F (5 to 30°C)
0 to 75%, 86 to 104°F (30 to 40°C)
0 to 45%, 104 to 122°F (40 to 50°C)
Battery Type and Life 2 x AA (IEC LR6)
360 hours continuous
Typical; 200 hours using FieldSense
Temperature Coefficient 0.1 x (specified accuracy) /°C for <18 or >28°C
Safety IEC/EN 61010-1: Pollution degree 2
Electromagnetic Environment IEC/EN 61326-1: Portable
Dimensions 2.4 x 10.2 x 1.7" (61.1 x 259.3 x 43.8 mm)
Weight 0.78 lb (350 g)
Click here for complete specifications on the Fluke T6-1000

What's included with the Fluke T6-1000

  • Electrical Tester
  • Attached Test Leads, with 0.16" (4 mm) Removable Probe Caps
  • User's Manual

Introducing the Fluke T6 Electrical Tester

This video gives a brief introduction to the main features on the Fluke T6 like the fact that you can measure voltage and current levels at the same time! Without test leads!
