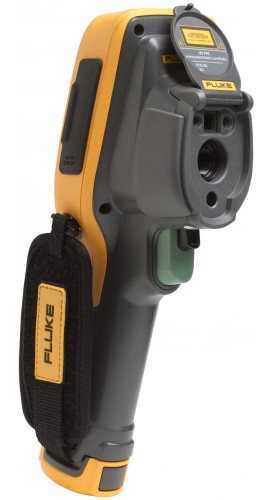

Fluke Ti95 9hz General Use Thermal Imager

Model: Ti95 9HZ | Order No: TI95-9HZ

This general use Thermal Imager features a resolution of 80 x 80 with thermal sensitivity of <0.10°C and a temperature range from -20 to 250°C.

This product has been discontinued. Click here for the replacement model(s).


Fluke Connect is the best way to stay in contact with your team without leaving the field.




Fluke TI95-9HZ Ti95 Fluke Connect Enabled Infrared Camera

Identify problems with ease before they become costly failures. The Ti95 combined with Fluke Connect modules gives you the ultimate test equipment suite.

Fluke Quality, Coupled with Standard Performance for Everyday Troubleshooting

Save time and money by identifying problems before they become costly failures. The Ti95 has 80 x 80 resolution and comes standard with IR Fusion® Technology, the blending of digital and infrared images into a single image making precise documentation quick and easy.

With thermal sensitivity of < 0.10°C at 30°C (100 mK) and a temperature range from -20°C to 250°C, the Ti95 is suited for everyday troubleshooting in most industrial applications.

The Importance of Ease of Use and Comfort While On the Job

The Ti95 was designed for one handed operation, it is lightweight at 0.726 kg and features a bright 3.5" LCD Screen. Users can operate the Ti95 with ease while wearing gloves using the well sized buttons and intuitive menu.


Also Included:

  • AC Power Adapter
  • Lithium Ion Smart Battery
  • USB Cable
  • SD Memory Card
  • Hard carrying case
  • Soft transport bag
  • Adjustable hand strap
  • Printed users manual
  • SmartView® software
  • Warranty registration card

Fluke Ti95-9HZ Specifications

IFOV (Spatial Resolution) 5.6mRad
Detector Resolution 80 x 80 (6,400 pixels)
Field of View 26°H x 26°V
Minimum Focus Distance 46cm (18")
Focus System Focus free (fixed focus)
Wireless Connectivity Fluke Connect app compatible with included wireless SD Card
IR-Fusion Technology IR-Fusion Picture-in-Picture (AutoBlend mode available inSmartView software)
Display 3.5" diagonal (portrait format)
Thermal Sensitivity (NETD) ≤0.10°C at 30°C target temp (100mK)
Temperature Measurement Range -20 to 250°C (-4 to 482°F)
Built-in Digital Camera (Visible Light) 2 megapixel industrial performance
Frame Rate 9Hz
Accuracy ±2°C or 2% (at 25°C nominal, whichever is greater)
On-screen Emissivity Correction Yes (both value and table)
Color Palettes 6 standard: Ironbow, Blue-Red, High-Contrast, Amber, Hot Metal, Grayscale
Click here for complete specifications on the Fluke Ti95 9HZ

What's included with the Fluke Ti95-9HZ

  • Ti95-9HZ Thermal Imager
  • AC power adapter
  • Lithium ion smart battery
  • USB cable
  • SD memory card
  • Fluke Connect wireless SD Card (where available, shipped separately in non-European countries)
  • Soft transport bag
  • Adjustable hand strap
  • Warranty registration card
This product features Fluke Connect Technology

See it. Save it. Share it. All the facts, right in the field.

Fluke engineers have delivered an innovative mobile platform and tool that helps solve everyday problems, allowing you to instantly document measurements, retrieve historical data, and share live measurements with your team. All handled by the Android™ or iOS smart phone you already carry.

Fluke Connect with ShareLive™ video call is the only wireless measurement system that lets you stay in contact with your entire team without leaving the field. The Fluke Connect mobile app is works with over 20 different Fluke products - the largest suite of connected test tools in the world.

Make the best decisions faster than ever before by viewing temperature, mechanical, electrical and vibration measurements for each equipment asset in one place. Get started saving time and increasing your productivity.


Fluke Connect Features:

  • TrendIt™ Graphs: Use graphing to show changes in measurements, allowing you to graph and show problems instantly.
  • EquipmentLog™ History: Access equipment history building a database of equipment health and baselines with cloud backup.
  • ShareLive™ Video Calls: Save, collaborate and share measurements instantly with your team anytime, from anywhere.
  • AutoRecord™ Measurements: Instantly save measurements to your phone with Cloud backup.
  • Fluke Cloud™ Storage: Securely access equipment records anywhere, anytime.

Fluke Connect Benefits:

  • Maximize uptime
  • Minimize maintenance costs
  • Better assessments with accurate records
  • Higher efficiency with less walking around; no notebook and excel needed
  • Share troubleshooting knowledge live
  • Create and share helpful content in the field
  • Access to Fluke digital product manuals means no need to carry manuals in the field
  • Keep organized manually entered measurements
