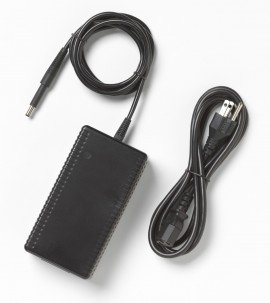

Fluke BC500 AC Power Charger

Model: BC500

Replacement or AC space charger for Fluke 500 Series Battery Analyzers. Provides power cord operation and charging for Fluke 500 Series Battery Analyzers.

Fluke BC500 Offers

The BC500 is a universal mains-power adapter (the Adapter or Product) for measurement, control, and laboratory equipment. The Adapter is intended for operating and charging the Fluke BT500-Series Battery Testers. The Adapter is based on the switched-mode concept for high efficiency and low stand-by power consumption, and complies with level-VI requirements. It operates in a wide range of input voltages from 100 Vac up to 240 Vac nominal. A mains cord is included to make the Adapter suitable for most types of mains outlet.

Fluke BC500 Specifications

Input
Nominal input voltage	100 Vac to 240 Vac, ±10 %
Input current	0.35 A at max. load
Nominal input frequency	50 Hz to 60 Hz ±5 %
Mains Inlet	IEC 60320-1 type C8
Input power, no load	< 0.1 W (@ 115 / 230 Vac)
Output
Output voltage	18 Vdc ±5 %
Output current	0 mA to 840 mA
Output cable length	2 m (6.5 ft)
Output connector	5.5 mm outer diameter, per DIN45232
Output polarity	Inner contact positive, outer contact negative
General
Dimensions	79 mm x 149 mm x 49 mm
Housing material	Black Heat Resistant ABS
Weight	0.35 kg

What's included with the Fluke BC500

Power Adapter
DC Cable
2-Wire Mains Cords with male and female connector
