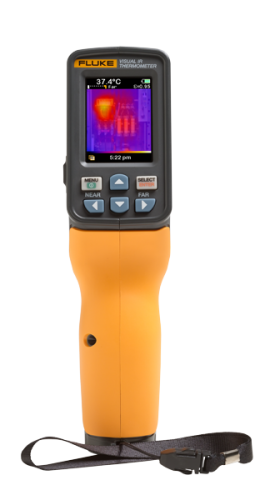

Fluke VT04A Visual IR Thermometer, AA Batteries, 14 to 482。F

Model: VT04A

Featuring a great in-between tool for those times when a single spot temperature reading is not enough and a high-resolution thermal image is more than you need. Includes a 4 x AA batteries and soft carrying case.

Add In-House ISO Certified Calibration to your VT04A


$658.80 CAD

was $732.00

Availability:
11 to 12 Weeks
Need a quote?




Fluke VT04A Offers

With this visual infrared thermometer you can detect and capture issues instantaneously with digital and thermal blended images, pinpoint hot and cold spots with temperature markers, and document problems efficiently with SmartView® software.

Features

  • AA batteries that last longer - Change batteries quickly, and keep working longer with features that extend battery life
  • Utilizes hyper-thin pyroelectric array technology
  • Point and shoot, focus-free design
  • Get the complete picture by saving a blended infrared and visual image with every image capture instantly
  • A blended image captures a center point temperature measurement and hot and cold markers all at once, allowing you to pinpoint the exact location of the potential problems
  • Automatic hot and cold spot trackers
  • Hi/Lo temperature alarm finds hot spots in seconds
  • Automatically capture images after an alarm has been triggered
  • Automatically monitor equipment over time with the time lapse image capture feature
  • On-screen emissivity correction
  • On-screen reflected background temperature compensation
  • Controls and adjustments: Select color palette; user selectable temperature scale (°F/°C); Time/date set

Applications

  • Industrial maintenance
  • Electrical
  • HVAC/R
  • Automotive

Fluke VT04A Specifications

Key Specifications
Built-In Visual Camera Yes, get the context of visible light details in your images
Thermal Heat Map Overlay Yes, five blending modes on camera and continuous blending in SmartView® software
Image Optics Systems PyroBlend® Plus optic
Field of View 28° x 28° - the tight field of view lets you see more detail in your target
High/Low Temperature Alarms Yes, high and low temperature alarms flash whenever the temperature threshold is exceeded, alerting you when a temperature is outside the expected range
Time-Lapse Image Capture Yes, automatically capture images at set intervals to see how temperature patterns change over time
Auto-Monitor Alarm Yes, gain insight into intermittent problems by automatically capturing images when your selected temperature threshold is exceeded
Ergonomics Slim, lightweight, pocket-sized design
Hot and Cold Markers Yes, instantly identify the hottest and coldest spots in your image
General Specifications
Temperature Measurement Range: 14 to 482°F (-10 to 250°C)
Accuracy: ±2°C or ±2%
Area: Center measurement box on screen shows the exact area the measurement is based on
Storage Medium 4 GB micro-SD card that stores up to 9,999 images
Infrared Spectral Band 6.5 µm to 14µm
Level and Span Auto
Focus Mechanism Focus free
Alignment Options Near: <9" (23 cm) from target
Far: >9" (23 cm) from target
Dimensions 8.3 x 3 x 2.2" (21 x 7.5 x 5.5 cm)
Weight 385 g (13.5 oz)
File Format .bmp or .is2. (the .is2 is editable in SmartView® software)
Software Professional SmartView® software enables you to optimize and analyze images, create quick reports and export images to multiple formats
Battery Type: 4 x AA batteries
Life: 8 hours
Safety and Compliance CFR47: 2009 Class A. Part 15 subpart B; CE: EN 61326:2006; IEC/EN 61010-1:2010
Warranty 2-year
Click here for complete specifications on the Fluke VT04A

What's included with the Fluke VT04A

  • Visual IR Thermometer
  • Soft Case
  • Micro SD Card and Adapter
  • 4 x AA Batteries

Accessories

Click on a category to view a selection of compatible accessories with the Fluke VT04A Visual IR Thermometer, AA Batteries, 14 to 482。F.

Fluke C90 Soft Carrying Case for DMM and Visual IR Thermometers C90
Zippered carrying case with inside pocket and belt loop.
$61.96 CAD

Learn More


Ask a question about the Fluke VT04A Visual IR Thermometer, AA Batteries, 14 to 482。F :

comments powered by Disqus

Customer Reviews for the Fluke VT04A
