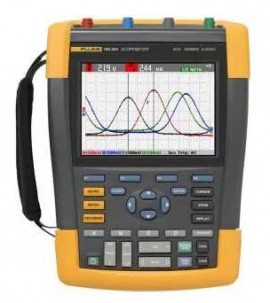

Fluke 190-504/AM/S ScopeMeter Test Tool, 500MHz, 4 Channel

Model: 190-504/AM/S

This scopemeter features a high bandwidth of 500 MHz and a fast sample rate of 5 GS/s. It is ideal test tool for plant maintenance engineers and technicians and designed to withstand harsh, dirty, and hazardous industrial conditions. Includes SCC 290 kit.

Add In-House ISO Certified Calibration to your 190-504/AM/S


$8,732.00 CAD

Availability:
1 to 2 Weeks
Need a quote?




Fluke 190-504/AM/S Offers

A faster sample rate and higher bandwidth means greater accuracy and clarity. The scope will capture and display unknown waveform shapes, amplitudes and any disturbances. In order to display at least the fifth harmonic component of a signal, a good rule of thumb is to select a scope with a bandwidth of at least five times the maximum clock rate of the device under test. The faster the sample interval, the more accurate and detailed the scope will display a signal edge (dV/dt) and peaks of any reflections or transients.

Features

  • Four electrically isolated inputs
  • CAT III 1000 V/CAT IV 600 V safety rated
  • Fast sampling rate, up to 5 GS/s with up to 200 ps resolution
  • Deep memory: 10,000 samples per channel waveform capture so you can zoom in on the details
  • Dedicated 999 Count digital multimeter
  • Four meter measurements via scope BNC inputs in four-channel models
  • Connect-and-View™ continuous auto-trigger, single shot, pulse width, and video triggering
  • ScopeRecord roll mode, capture waveform sample data for up to 48 hours
  • TrendPlot, trend measurement readings for up to 22 days
  • Advanced automatic measurements, power (Vpwm, VA, W, PF) and time (mAs, V/s, w/s)
  • IP-51 rated for dust and drip proof to withstand harsh environments
  • Isolated USB ports for memory devices and PC connectivity
  • Li-Ion battery for extended operating timespan
  • Easy-access battery door to make it easy to swap batteries
  • A handy slot to tether and lock down the oscilloscope while unattended using a standard Kensington® lock

Fluke 190-504/AM/S Specifications

Vertical Deflection
Bandwidth 500 MHz
Number of Channels 4 Channels
Number of Scope Inputs 4 Input Channels
Input Sensitivity 2 mV-100 V/div plus variable attenuation
Accuracy ±(2.1% of reading + 0.04 x range/div) @ 5 mV/div to 100 V/div
Horizontal Deflection
Maximum Real-Time Sample Rate 5 GS/s (single channel) or 1.25GS/s per channel
Maximum Record Length 10,000 samples per channel in scope mode
30,000 points per channel in ScopeRecord Roll mode
Maximum Record Length ScopeRecord mode: 30,000 pts per input
Scope mode: 10,000 pts per input
Timing Accuracy ±(0.01% of reading + 1 pixel)
Voltage
DC Accuracy ±(1.5% + 5 counts)
AC True RMS Accuracy 15 Hz to 60 Hz: ±(1.5% + 10 counts)
60 Hz to 20 kHz: ±(2.5% + 15 counts)
AC/DC True RMS Accuracy 15 Hz to 60 Hz: ±(1.5% + 10 counts)
60 Hz to 20 kHz: ±(2.5% + 15 counts)
Ranges 500 mV, 5, 50, 500, 1,000 V
General Specifications
Memory Locations 30 waveform memories plus 10 recording memories plus 9 screen copy memories
Display Size 127 x 88 mm
153 mm (6.0") Diagonal
LCD
Resolution 320 x 240 pixels
Power Supply Rechargeable, Double Capacity Li-Ion Battery
Dimensions 265 x 190 x 70 mm (10.5 x 7.5 x 2.8")
Weight Including Battery: 2.2 kg (4.8 lbs)
Click here for complete specifications on the Fluke 190-504/AM/S

What's included with the Fluke 190-504/AM/S

  • ScopeMeter
  • Voltage Probe Set (each set includes ground lead, hook clip, ground spring and probe tip insulation sleeve)
  • Hangstrap
  • Handstrip
  • USB Interface Cable
  • Li-Ion Battery Pack
  • Battery Charger/Mains Adapter
  • FlukeView® Demo Package
  • Instruction Manual on CD-ROM

Fluke ScopeMeter 190 Series II Portable Oscilloscopes Demo Circuit: Overview


This video showcases the main features and functions of these portable oscilloscopes. Additionally, the user can perform timing or amplitude related measurements on three phases or three-axis control systems, or compare and contrast multiple test points in a circuit under test.

How To Use Instant Replay On a Fluke 190 ScopeMeter Oscilloscope


In this video, the user learns how to capture random events using triggering and show the results in instant replay. The scope meter oscilloscope can quickly and easily capture disturbances to make sense of your signals and eliminate the tedium of troubleshooting.

How To Create and Recall Waveforms Using the Fluke 190 Series Portable Oscilloscope


This video will serve as a step by step tutorial on how to set up waveforms with the oscilloscope, and how to return settings to factory default. Additionally, this instrument offers the same performance as a bench scope with feature-rich capabilities to tackle just about any troubleshooting task.

How to Synchronize a Fluke 190 Series Portable Oscilloscope with Basic Triggers


This video breaks down the process of synchronizing your portable oscilloscope with triggers. The TRIGGER function allows the user to synchronize their scopemeter with the signal the oscilloscope is connected to and display waveforms on your instrument.

How To Startup and Reset Settings on the Fluke ScopeMeter Portable Oscilloscope


This video is a walkthrough on how to power up and perform a reset with the scopemeter. Ideal for plant maintenance engineers and technicians, this instrument goes into harsh and dirty industrial conditions to test everything from microelectronics to power electronics applications.

How To Transfer Data From a Fluke ScopeMeter Portable Oscilloscope onto a USB Drive


This video is a tutorial on how to transfer data from a fluke scope meter directly onto a USB drive. The oscilloscope comes with an isolated USB host port for direct data storage from a USB to a computer.

How To Use the TrendPlot® Function on the Fluke ScopeMeter Portable Oscilloscope


In this video, the user learns how to set up the TrendPlot function to find intermittent faults. The function plots minimum and maximum peak values for up to 22 days, in any combination of voltages, amps, temperature, frequency, and phase for all four inputs.

Accessories

Click on a category to view a selection of compatible accessories with the Fluke 190-504/AM/S ScopeMeter Test Tool, 500MHz, 4 Channel.

Fluke BC190/830 Power Adapter, Universal, 190 Series BC190/830
Universal, mains power adapter for use with Fluke 190 Series ScopeMeter Test Tool.
$201.60 CAD

was $224.00


Learn More

Fluke VPS420-B Voltage Probe Set, Blue VPS420-B
Ruggedized high working voltage probe set for 190 Series Scopemeter.
$0.00 CAD

Learn More

Fluke VPS421-G Voltage Probe Set, Grey VPS421-G
Ruggedized high working voltage probe set for 190 series scopemeter, 150 MHZ 100:1 2000V (1000V CAT III TO EARTH).
$326.70 CAD

was $363.00


Learn More

Fluke VPS420-V Voltage Probe Set, Green VPS420-V
Ruggedized high working voltage probe set for 190 series scopemeter, 150 MHZ 100:1 2000V (1000V CAT III TO EARTH).
$335.70 CAD

was $373.00


Learn More

Fluke SKMD001/NON-US Service Kit SKMD001/NON-US
Service kit meter and drive applications for Fluke 190 Scopemeters.
$1,781.00 CAD

Learn More
