Fluke 345 Power Quality Clamp Meter, 1400 A-

Downloads: datasheet manual

Ask an Expert

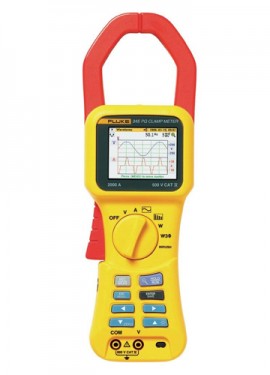

Fluke 345 Power Quality Clamp Meter, 1400 A

Model: 345

Combines the functions of a clamp meter, oscilloscope, data logger, and digital power meter in one, making this unit ideal for measurements on switching loads such as variable frequency drives, electronic lighting, and UPS systems. Also, it's Hall Effect measurement system measures DC currents without breaking the circuit.

Discontinued!

This product has been discontinued and is no longer available.

There is no direct replacement, however we recommend the:

Fluke 1732/EUS Three-Phase Electrical Energy Logger with current probes

Model: 1732/EUS

Designed to find sources of electrical energy waste, which allows the user to locate when and where energy in your facility is being consumed; from the service entrance to individual circuits. Additionally, the Energy Analyze software package allows users to compare multiple data points over time and comes with current probes.

Learn More

Fluke 1732/B Three-Phase Electrical Energy Logger, basic

Model: 1732/B

Learn More

Not what you're looking for? Let’s do a search and help you find what you need.

Specifications

Battery Life	>10-12 hours
Battery Type	6x aa
CAT III Rating	1000v
CAT IV Rating	600v
Current AC Accuracy	3% ± 5 counts
Current DC Accuracy	1.5 % ± 5 counts
Current Inputs	1
Dimensions	300 mm x 98 mm x 52 mm (12 in x 3.75 in x 2 in)
IP Rating	ip40
Jaw Opening	2.3
Max Wire Size	750/3x 500
Memory	2
Operating Temperature	32°f to +122°f (0°c to +50°c)
Sample Rate	9.6
Typical Recording Period	1
Voltage AC Accuracy	1 % + 5 counts
Voltage DC Accuracy	1 % + 5 counts
Voltage Inputs	1
Warranty	2 years
Weight	820 g (1.8 lb)

Click here for complete specifications on the Fluke 345

What's included with the Fluke 345

Clamp Meter
Power Log Software
Test Leads
Alligator Clips
Test Probes
USB Cable
Carrying Case
International AC Adapter/Battery Eliminator
Printed English Language User Manual
Multi-Language Manual CD

Webinar: Introduction to Portable Precision Power Analyzers with Fluke

This wideband precision analyzer is accurate enough for the lab, yet it's built for the field. Offering you more freedom than ever before to make high accuracy power measurements wherever you need to. Whether in the lab or in the field. Designed for portability and eliminates the need to carry large, fragile, expensive analyzers into the field, allowing you to make measurements directly at the load in nearly any environment. By measuring directly at the load, you can discover how the equipment operates under real-world conditions, with real-world variables, not just at a test bench or in the lab.
