Fluke 714 Thermocouple Calibrator-
Downloads: datasheet manual

Ask an Expert

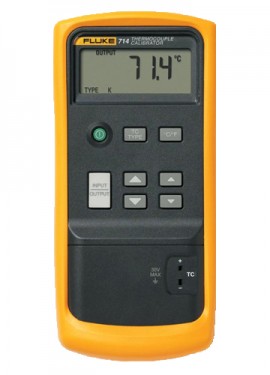

Fluke 714 Thermocouple Calibrator

Model: 714

Measure temperature from TC output, simulate TC output. The Fluke 714 Thermocouple Calibrator delivers outstanding performance, durability and reliability. The calibrator is compact, lightweight, and easy to carry. Easy-to-use with just a push-button interface. Each calibrator is EMI tolerant, dust- and splash-resistant, and features a removable battery door for quick battery changes.

Discontinued!

This product has been discontinued and is no longer available.
This is the direct replacement:

Fluke 714B Temperature Calibrator, 4 to 20 mA-

Fluke 714B Temperature Calibrator, 4 to 20 mA

Model: 714B/EN | Order No: 714B

Rugged construction with an easy-to-use interface, this single function thermocouple temperature calibrator measures 4 to 20mA signals while sourcing a temperature signal. Featuring intelligent shutdown, the calibrator remembers settings when powered down so you don't have to, and can replicate tests after powering back up.

Learn More


Fluke 714 Offers

Fluke 714 Thermocouple Calibrator delivers outstanding performance, durability and reliability. The calibrator is compact, lightweight, and easy to carry. And with a push-button interface, similiar to the Multifunction Documenting Process Calibrators, the Fluke 714 is easy to use. Each calibrator is EMI tolerant, dust- and splash-resistant, and features a removable battery door for quick battery changes.

Fluke 714 Specifications

Function specifications
Measure / simulate thermocouple
Range-200 to 1800 °C, depending on type
Resolution: 0.1 °C
Accuracy: 0.3 °C + 10 µV

Note: 9 TC types; J K T E R S B per NIST 175 and ITS-90 L U per DIN 43710 and IPTS-68
Measure / simulate mV
Range: -10 to 75 mV
Resolution: 0.01 mV
Accuracy: 0.025% + 1 count

Specifications
Display

LCD, 5 digit pressure and current simultaneous

Environmental Specifications
Operating temperature

-10°C to 55°C
Storage temperature

-40°C to 60°C
Humidity (Without Condensation)

95% (10 °C to 30 °C)

75% (30 °C to 40 °C)

45% (40 °C to 50 °C)

35% (50 °C to 55 °C)
Operating Altitude

3,000m max

Safety Specifications
Safety

CSA C22.2 No. 1010.1:1992

Mechanical & General Specifications
Size

187 mm L x 87mm W x 32 mm

(7.93 in. L x 3.86 in. W x 2.06 in D)
Weight

Approx. 330 g

(21 oz)
Warranty

3 years
Shock & Vibration

Random, 2G, 5-500 Hz

1m drop test
Battery type

Single 9V battery ANSI/NEDA 1604A or IEC 6LR619V alkaline

Click here for complete specifications on the Fluke 714

What's included with the Fluke 714

  • Fluke 714 Thermocouple Calibrator
  • Protective yellow holster with test lead storage
  • Instructions sheet (14 languages)
  • Single 9V alkaline battery
  • Test Leads and Alligator Clips
  • NIST-traceable calibration report and data
