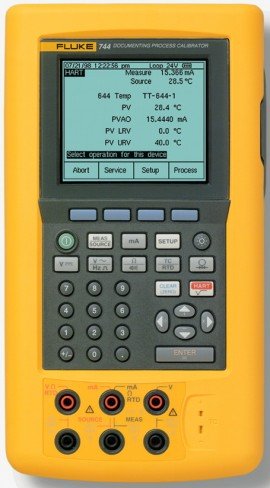

Fluke 744 Documenting Process Calibrator

Model: 744-120

Be the first to review this product

HART Communications capability. Measure: 300V DC, 110mA DC. Source: 15V DC, 22mA DC.

Discontinued!

This product has been discontinued and is no longer available.
This is the direct replacement:

Fluke 754 Documenting Process Calibrator with HART communication

Model: 754

Rugged and compact, this documenting process calibrator is powerful yet easy to use. Ideal for troubleshooting HART instrumentation, the calibrator offers communication and calibration functions in one tool. With a bright display and multi-lingual interface, the calibrator measures pressure, temperature, and electrical signals.

Learn More

Specifications
Included

Fluke 744-120 Specifications

Measurement Accuracy

Voltage DC

110.000 mV	0.025%+0.015% *
1.10000 V	0.025%+0.005% *
11.0000 V	0.025%+0.005% *
110.000 V	0.05%+0.005% *
300.00 V	0.05%+0.005% *

110.000 mV

0.025%+0.015% *

1.10000 V

0.025%+0.005% *

11.0000 V

0.025%+0.005% *

110.000 V

0.05%+0.005% *

300.00 V

0.05%+0.005% *

Voltage AC

20 to 40 Hz	2% + 10
40 to 500 Hz	0.5% + 5
500 to 1 kHz	2% + 10
1 kHz to 5 kHz	10% + 20
Ranges	1.1000, 11.000, 110.00, 300V

20 to 40 Hz

2% + 10

40 to 500 Hz

0.5% + 5

500 to 1 kHz

2% + 10

1 kHz to 5 kHz

10% + 20

Ranges

1.1000, 11.000, 110.00, 300V

Current DC

30.000 mA	0.01% + 0.015% *
110.00 mA	0.01% + 0.015% *

30.000 mA

0.01% + 0.015% *

110.00 mA

0.01% + 0.015% *

Resistance

11.000 Ω	0.05% + 50 mΩ
110.00 Ω	0.05% + 50 mΩ
1.1000 kΩ	0.05% + 500 mΩ
11.000 kΩ	0.1% + 10 Ω

11.000 Ω

0.05% + 50 mΩ

110.00 Ω

0.05% + 50 mΩ

1.1000 kΩ

0.05% + 500 mΩ

11.000 kΩ

0.1% + 10 Ω

Frequency

1.00 to 109.99 Hz	0.05 Hz
110.0 to 1099.9 Hz	0.5 Hz
1.100 to 10.999 kHz	5 Hz
11.00 to 50.00 kHz	50 Hz

1.00 to 109.99 Hz

0.05 Hz

110.0 to 1099.9 Hz

0.5 Hz

1.100 to 10.999 kHz

5 Hz

11.00 to 50.00 kHz

50 Hz

Pressure

Accuracy	from 0.025% of range using any of 29 pressure modules.
	Modules available for differential, gauge, vacuum, absolute, dual and high pressure.
	(for detailed specifications refer to pressure modules in options and accessories)

Accuracy

from 0.025% of range using any of 29 pressure modules.

Modules available for differential, gauge, vacuum, absolute, dual and high pressure.

(for detailed specifications refer to pressure modules in options and accessories)

Note

*	(% of reading + % of full scale)

(% of reading + % of full scale)

Source Accuracy

Voltage DC

110.000 mV	0.01%+0.005% *
1.10000 V	0.01%+0.005% *
15.0000 V	0.01%+0.005% *

110.000 mV

0.01%+0.005% *

1.10000 V

0.01%+0.005% *

15.0000 V

0.01%+0.005% *

Current DC

22.000 mA (Source)	0.01%+ 0.015% *
22.000 mA (Simulate)	0.02% + 0.03% *

22.000 mA (Source)

0.01%+ 0.015% *

22.000 mA (Simulate)

0.02% + 0.03% *

Resistance

11.000 Ω	0.01% + 20 mΩ
110.00 Ω	0.01% + 40 mΩ
1.1000 kΩ	0.02% + 500 mΩ
11.000 kΩ	0.03% + 5Ω

11.000 Ω

0.01% + 20 mΩ

110.00 Ω

0.01% + 40 mΩ

1.1000 kΩ

0.02% + 500 mΩ

11.000 kΩ

0.03% + 5Ω

Frequency

0.00 to 10.99 Hz	0.01 Hz
11.00 to 109.99 Hz	0.1 Hz
110.0 to 1099.9 Hz	0.1 Hz
1100 to 21999 Hz	2 Hz
22.000 to 50.000 kHz	5 Hz

0.00 to 10.99 Hz

0.01 Hz

11.00 to 109.99 Hz

0.1 Hz

110.0 to 1099.9 Hz

0.1 Hz

1100 to 21999 Hz

2 Hz

22.000 to 50.000 kHz

5 Hz

Note

*	(% of reading + % of full scale)

(% of reading + % of full scale)

RTDs and Thermocouples

Measure Accuracy

10 Ω Cu (427):

2°C

100 Ω Pt (3916)

0.3°C

100 Ω Pt (3926)

0.3°C

100 Ω Pt (385)

0.3°C

200 Ω Pt (385)

0.3°C

500 Ω Pt (385)

0.3°C

1000 Ω Pt (385)

0.3°C

120 Ω Ni (672)

0.3°C

note

For 2-and 3-wire measurement, add 0.4°C

0.3°C

0.5°C

0.3°C

0.9°C

1.0°C

0.9°C

0.6°C

1.2 ºC

0.4 ºC

note

Accuracy with external cold junction, for internal junction add 0.2°C

Source Accuracy:

10 Ω Cu (427)	1°C
100 Ω Pt (3916)	0.1°C
100 Ω Pt (3926)	0.1°C
100 Ω Pt (385)	0.1°C
200 Ω Pt (385)	0.1°C
500 Ω Pt (385)	0.1°C
1000 Ω Pt (385)	0.1°C
120 Ω Ni (672)	0.1°C
note	For 2-and 3-wire simulation, add 0.4°C
E	0.2°C
N	0.3°C
J	0.2°C
L	0.2°C
K	0.3°C
T	0.3°C
U	0.3°C
B	0.8°C
R	0.9°C
S	0.9°C
C	0.6°C
BP	0.5 ºC
XK	0.4 ºC
note	Accuracy with external cold junction, for internal junction add 0.2°C

10 Ω Cu (427)

1°C

100 Ω Pt (3916)

0.1°C

100 Ω Pt (3926)

0.1°C

100 Ω Pt (385)

0.1°C

200 Ω Pt (385)

0.1°C

500 Ω Pt (385)

0.1°C

1000 Ω Pt (385)

0.1°C

120 Ω Ni (672)

0.1°C

note

For 2-and 3-wire simulation, add 0.4°C

0.2°C

0.3°C

0.2°C

0.3°C

0.8°C

0.9°C

0.6°C

0.5 ºC

0.4 ºC

note

Accuracy with external cold junction, for internal junction add 0.2°C

Technical Data

Data Log Functions

Measure functions	Voltage, current, resistance, frequency, temperature, pressure
Reading rate	1, 2, 5, 10, 20, 30, or 60 readings/minute
Maximum record length	8000 readings (7980 for 30 or 60 readings/minute)

Measure functions

Voltage, current, resistance, frequency, temperature, pressure

Reading rate

1, 2, 5, 10, 20, 30, or 60 readings/minute

Maximum record length

8000 readings (7980 for 30 or 60 readings/minute)

Ramp Functions

Source functions	Voltage, current, resistance, frequency, temperature
Rate	4 steps/second
Trip detect	Continuity or voltage (continuity detection not available when sourcing current)

Source functions

Voltage, current, resistance, frequency, temperature

Rate

4 steps/second

Trip detect

Continuity or voltage (continuity detection not available when sourcing current)

Loop Power Function

Voltage	Selectable, 24 V or 28 V
Accuracy	5%
Maximum current	22 mA, short circuit protected
Maximum input voltage	30 V DC

Voltage

Selectable, 24 V or 28 V

Accuracy

0.05

Maximum current

22 mA, short circuit protected

Maximum input voltage

30 V DC

Step Functions

Source Functions	Voltage, current, resistance, frequency, temperature
Manual Step	Selectable step, change with arrow buttons
Autostep	Fully programmable for function, start delay, stepvalue, time per step, repeat

Source Functions

Voltage, current, resistance, frequency, temperature

Manual Step

Selectable step, change with arrow buttons

Autostep

Fully programmable for function, start delay, stepvalue, time per step, repeat

Environmental Specifications

Operating temperature

	-10°C to +50°C
	-20°C to +50°C *

-10°C to +50°C

-20°C to +50°C *

Storage temperature

-20°C to +60°C

Dust/water resistance

Meets IP52, IEC 529

Operating Altitude

2800 m

Note

*	Except frequency and AC

Except frequency and AC

Safety Specifications

Agency Approvals

CAN/CSA C22.2 No 1010.1-92, ASNI/ISA S82.01-1994, UL3111, and EN610-1:1993

Mechanical & General Specifications

Size

130 x 236 x 61 mm (5.1 x 9.3" x 2.4")

Weight

1.4 kg (3 lbs., 1oz.)

Batteries

NiMH	7.2V, 3.5 Ah

NiMH

7.2V, 3.5 Ah

Battery life

>10 hours typical

Battery Replacement

Via snap-shut door without opening calibrator; no tools required

Side port connections

	Pressure module connector
	RS-232 connector for PC interface cable and for HART communication cable
	Connection for optional battery eliminator

Pressure module connector

RS-232 connector for PC interface cable and for HART communication cable

Connection for optional battery eliminator

Data storage capacity

1 week of calibration results

90 day specifications

	The standard specification interval for the 744 is 1 and 2 years.
	Typical 90 day measurement and source accuracy can be estimated by
	dividing the one year "% of reading" or "%of output" specifications by 2.
	Floor specifications, expressed as "% of full scale" or
	"counts" or "ohms" remain constant.

The standard specification interval for the 744 is 1 and 2 years.

Typical 90 day measurement and source accuracy can be estimated by

dividing the one year "% of reading" or "%of output" specifications by 2.

Floor specifications, expressed as "% of full scale" or

"counts" or "ohms" remain constant.

What's included with the Fluke 744-120

Fluke TL224 Industrial Test Leads (2 sets)
Fluke AC220 Test Clips (2 sets)
Fluke TP220 Test Probes
Fluke BP7235 NiMH Battery Pack
Fluke BC7217 Battery Charger
Instruction Manual, HART user's manual
NIST Traceable calibration certificate and data
Serial port cable, HART communications cable
DPC/TRACK sample version with free PC communication utility software
