Fluke 376 True-RMS 1000A AC/DC Clamp Meter with iFlex-
Downloads: datasheet manual

Ask an Expert

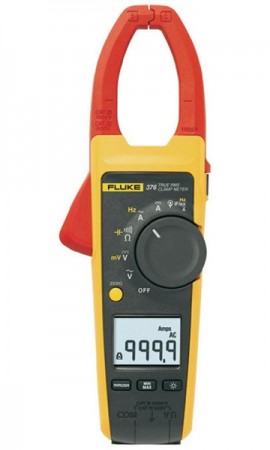

Fluke 376 True-RMS 1000A AC/DC Clamp Meter with iFlex

Model: 376

AC/DC Clamp Meter with backlight (TRMS, 1000AAC/DC, 1000VAC, Continuity, Frequency, MIN/MAX, mV DC) and up to 2500A AC with the included 18" iFlex flexible current probe.

Discontinued!

This product has been discontinued and is no longer available.
This is the direct replacement:

Fluke 376 FC True RMS AC/DC Clamp Meter with iFlex-

Fluke 376 FC True RMS AC/DC Clamp Meter with iFlex

Model: 376 FC | Order No: 376FC

Ideal for a wide range of current measurement situations, this True RMS clamp meter also comes equipped with the iFlex™ flexible current probe which increases flexibility and measures awkward sized conductors. Additionally, this tool can read up to 1000 V and 1000 A in both ac and dc modes.

Learn More


Fluke 376 True-RMS 600A AC/DC Clamp Meter

The Fluke 376 Clamp Meter offers improved performance perfect for a wide range of current measurement situations. With true-rms ac voltage and current measurements, the Fluke 375 can read up to 600 V and 600 A in both ac and dc modes with the fixed jaw.

Additionally, the Fluke 376 is compatible with the new iFlex™ flexible current probe (sold separately) which expands the measurement range to 2500 A ac and provides increased display flexibility, ability to measure around awkward sized conductors and improved wire access.

Fluke 376 Measurement Capability:

  • 999.9 A ac and dc current measurement with fixed jaw
  • 2500 A ac current measurement with iFlex™ flexible current probe (sold separately)
  • 1000 V ac and dc voltage measurement
  • True-rms ac voltage and current for accurate measurements on non-linear signals
  • Frequency measurement to 500 Hz with both jaw and iFlex™
  • Resistance measurement to 60 kΩ with continuity detection
  • Min, max, average and inrush recording to capture variations automatically
  • 500 mV dc measurement range to interface with other accessories
  • 1000 &mini;F capacitance measurement

Key Features of the Fluke 376:

  • iFlex™ flexible current probe expands the measurement range to 2500 A ac while providing increased display flexibility, ability to measure awkward sized conductors and improved wire access
  • CAT IV 600V, CAT III 1000 V safety rating
  • Integrated low pass filter and state of the art signal processing allows for use in noisy electrical environments while providing stable readings
  • Proprietary inrush measurement technology to filter out noise and capture motor starting current exactly as the circuit protection sees it
  • Ergonomic design fits in your hand and can be used while wearing personal protective equipment
  • Large, easy to read, backlight display automatically sets the correct measurement range so you do not need to changeswitch positions while taking a measurement
  • Three-year warranty

The Fluke 376can be used with the Fluke iFlex i2500-18 flexible current probe which expands the measurement range to 2500 A AC while providing increased display flexibility, ability to measure awkward sized conductors and improved wire access.


Compare the newest Fluke Clamp Meter Models:


Fluke-365 Fluke-373 Fluke-374 Fluke-375 Fluke-376 Fluke-381
Measure ac current 200.0 A 600.0 A 600.0 A 600.0 A 999.9 A 999.9 A
Measure ac current via iFlex 2500 A 2500 A 2500 A 2500 A
Measure ac voltage 600.0 V 600.0 V 600.0 V 600.0 V 1000.0 V 1000.0 V
Measure continuity ≤ 30 Ω ≤ 30 Ω ≤ 30 Ω ≤ 30 Ω ≤ 30 Ω ≤ 30 Ω
Measure dc current 200.0 A 600.0 A 600.0 A 999.9 A 999.9 A
Measure dc voltage 600.0 V 600.0 V 600.0 V 1000.0 V 1000.0 V
Measure resistance 6,000 Ω 6,000 Ω 6,000 Ω 60k Ω 60k Ω 60k Ω
Measure frequency 500 Hz 500 Hz 500 Hz
Measure inrush 100 mS 100 mS 100 mS 100 mS
Work in poorly lit areas Backlight Backlight Backlight Backlight Backlight Backlight
Measure non-linear loads True-rms True-rms True-rms True-rms True-rms True-rms
Specifications
Diameter of measurable conductor01.3" or 34 mm max
Operating temperature-14 to 122°F (-10 to 50°C)
Storage Temperature-40 to 140°F (-40 to 60°C)
Operating Humidity< 90% @ 10 to 30 °C, < 75% @ 30 to 40°C
Operating Altitude0 to 3000 m
Size246 x 83 x 43 mm, (9.685 x 3.267 x 1.692 in.)
Weight388g, (14 oz.)
Temperature Coefficient0.01% °C
(<18°C or > 28°C)
WarrantyThree years for electronics
One year for cable and clamp assembly

iFlex Specs:

Specifications
i2500-18 and i2500-10
Range
Resolution
 Accuracy
AC Current*
2500 A
0.1 A
3% ± 5 digits**
Frequency*500 Hz
0.1 Hz
0.5% ± 5 digits
External magnetic
field rejection
(with cable >10 cm from the coupling)
40 dB
Inrush*Yes
Safety rating
 CAT III 1000 V, CAT IV 600 V
*When used with compatible Fluke meter. Accuracy stated includes probe and meter accuracy.
** For position accuracy at non-optimum positions, see Position sensitivity specifications table "A"

Position Sensitivity Specifications
Distance from Optimum
i2500-10
i2500-18
Additional iFlex error
A0.5 in (12.7 mm)
1.4 in (35.6 mm)td>
 ± 0.5%
B0.8 in (20.3 mm)
2.0 in (50.8 mm) ± 1.0%
C1.4 in (35.6 mm)
2.5 in (63.5 mm) ± 2.0%

Click here for complete specifications on the Fluke 376

What's included with the Fluke 376

  • 18-inch iFlex flexible current probe - i2500-18
  • TL75 test leads
  • Coated instruction card
  • Safety information sheet
  • Soft carrying case
  • Two AA Alkaline batteries

Fluke 376 TRMS AC/DC Clamp Meter with iFlex Flexible Current Probe: Overview


This video will demonstrate how the iFlex flexible current probe can expand the capabilities of this TRMS AC/DC clamp meter. Additionally, users can measure this instrument is compatible with the Fluke Connect app as well.

How to Select a Fluke Clamp Meter


In this video, the user will receive tips on how to select the right clamp meter. Additionally, clamp meters help plant maintenance, process technicians, electricians and utility maintenance professionals alike to conduct troubleshooting and general maintenance in a wide variety of applications.

How To Set Up the Fluke iFlex Flexible Current Probe


This video is designed to demonstrate how to set up and use your Fluke iFlex flexible current probe. It provides users to capability to take measurements in tight areas. Additionally, it is compatible with a variety of Fluke products.

Using the Fluke iFlex Flexible Current Probe in Tight Areas


This video demonstrates how this flexible current probe is used for awkward and tight spaces. For this specific scenario, it is paired with the Fluke 381. Additionally, it is also compatible with a variety of Fluke products.

Getting to know the Fluke 376 FC True RMS AC/DC Clamp Meter with iFlex


This video will serve as an overview of the Fluke 376 FC True RMS AC/DC Clamp Meter. The iFlex™ current probe can expand the capabilities of the clamp meter by getting into hard-to-reach places.

Using the Fluke iFlex Flexible Current probe with the Fluke 376 FC True RMS Clamp Meter


This video demonstrates the versatility of the Fluke iFlex flexible current probe. Additionally, it is compatible with a variety of Fluke meters.
