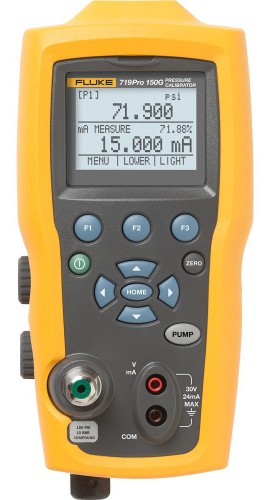

Fluke 719PRO-150G Electric Pressure Calibrator, 150 psi, 10 bar

Model: 719PRO-150G

Source, simulate, and measure mA signals with this electric pressure calibrator that features an integrated electric pump for one-handed pressure calibration up to 150 psi. Ideally suited to calibrate high-accuracy transmitters, pressure switches, and gauges, the unit features a backlit display and a rugged, handheld design.

Traceable Calibration Certificate for your 719PRO-150G Electric Pressure Calibrator

Yes, I would like to add a Traceable Calibration Certificate (Model CERTIPG4) for only $415.00 CAD

$7,555.79 CAD

Availability:
1 to 2 Weeks

Eliminate over-pressurizing and program target pressure for pumping with the pressure calibrator pump limit. Easy to use and versatile, the pressure calibrator features inputs for mA, voltage, switch contacts, and an RTD probe.

Integrated Electric Pump - Now to 300 psi, 20 bar

The Electric Pressure Calibrator is the ideal test tool for calibrating high accuracy transmitters, pressure switches and pressure gauges. The unit includes a full functioning loop calibrator that sources, simulates and measures mA signals and more. The large backlit screen displays three parameters at once.

Features

Pressure measurement from internal or external sensor
Sourced/simulated or measured mA values
Electric pump for one handed pressure calibration
Best in class pressure measurement uncertainty of 0.025%
Measure and source mA with best in class 0.015% accuracy
Precision pressure adjust vernier for accurate pressure calibration
Variable release rate bleed valve for easy pressure adjustment
Programmable pressure calibrator pump limit: eliminates over-pressurization and allows the user to program target pressures for pumping
Programmable 3-tiered display for maximum flexibility when displaying pressure, temperature, and electrical parameters of your choice
Display backlight
Damping, min/max, and % error function
Source mA with simultaneous pressure measurement to test valves and I/Ps
Simulate mA signals to troubleshoot 4-20 mA loops
Test pressure switches with built in switch test function
Power transmitters during test using 24 V loop supply with simultaneous mA measurement
Proven cleanout ports reduce pump failures
Moisture trap included with the unit helps mitigates risk of moisture damage

Applications

Petro-chemical
Oil and gas
Pharmaceutical
Water and wastewater
Food and beverage
Power generation

Application Selection Guide


Model number	754	721/721Ex	719Pro	719	718	717	700G	3130	2700G	Dead-weight Testers
Application
Calibrating pressure transmitters (field)	●	●	Ideal	●	●	●		●
Calibrating pressure transmitters (bench)	●	●	●	●	●	●		Ideal		●
Calibrating HART Smart transmitters	Ideal
Documenting pressure transmitter calibrations	Ideal
Testing pressure switches in the field	Ideal	●	●	●	●	●		●
Testing pressure switches on the bench	●	●	●	●	●	●		Ideal
Documenting pressure switch tests	Ideal
Testing pressure switches with live (voltage) contacts	Ideal
Gas custody transfer computer tests	●	Ideal	●
Verifying process pressure gauges (field)	Ideal	●	●	●	●	●	●
Verifying process pressure gauges (bench)	●	●	●	●	●	●		●	●	Ideal
Logging pressure measurements	●						Ideal		●
Testing pressure devices using a reference gauge									Ideal
Hydrostatic vessel testing							Ideal
Leak testing (pressure measurement logging)	●						Ideal

Pressure Calibration Selection Guide

Fluke 719PRO-150G Specifications

Pressure
Range	-12 to 150 psi / -0.8 to 10 bar
Resolution	0.01 psi, 0.001 bar
Accuracy	±0.025% of full scale, 6 months ± 0.035% of full scale, 1 year dry air and non-corrosive gas only
Temperature Effect	Add ± 0.002% F.S./°C for temps outside of 59 to 95°F (15 to 35°C) No effect on accuracy on all functions from 15 to 35°C
mA DC (Simulation and Measurement)
Range	0 to 24 mA DC
Resolution	0.001 mA
Accuracy	± 0.015% of reading ± 2 counts
Max Load in mA Source	1000 Ω
Max Voltage in mA Simulate	26 V DC
Volts DC (Measurement only)
Range	30 V DC
Resolution	0.001 V
Accuracy	± 0.015% of reading ± 2 counts
Temperature (Measurement only, Pt100 RTD)
Range	-50 to 150 °C (-50 to 302°F)
Resolution	0.01 to 0.01°F
Accuracy	± 0.1°C (0.2°F)
Loop Power Supply
Range	24 V DC
Accuracy	24 mA at 24 V
Temperature Effect (all functions)
Accuracy	Add ± 0.002% F.S./°C for temps outside of 15 to 35°C No effect on accuracy on all functions from 15 to 35°C
Connections
Pressure	1/8" female NPT
Electrical	Standard banana jacks
RTD	4 pin miniature circular
External Module	6 pin miniature circular
Power Requirements
Battery	8 x standard Alkaline AA batteries
Battery Life	300 pump cycles to 150 PSI minimum; 1000 pump cycles to 30 psi; 100 pump cycles to 300 psi minimum
Physical
Dimensions	9.5 x 4.4 x 2.8" (24.13 x 11.18 x 7 cm)
Weight	With holster 2.5 lb (1.2 kg)

Click here for complete specifications on the Fluke 719PRO-150G

What's included with the Fluke 719PRO-150G

Electric Pressure Calibrator
Traceable Certificate of Calibration
Test Leads with Alligator Clips
Fluid Trap
1/4" NPT to 1/4" ISO Adapter
Accessory Hose Kit with 2 x 1/8" Quick-Fit Adapters and 1 M Hose
Carrying Case
User's Manual
