A powerful, and easy-to-use bundle that offers full HART support for calibration, troubleshooting, and commissioning. Additionally, it automatically documents test results and supports multiple software packages, including DPCTrack2 and ProCalV5, and comes equipped with a rugged case.
Whether you're calibrating instruments, troubleshooting a problem, or running routine maintenance, this process calibrator can help you get the job done quicker. It's capable of doing many different tasks rapidly and well, it's the only calibrator you need to carry. Comes in a rugged design and is ideal for calibrating, maintaining, and troubleshooting HART and other instrumentation.
This is a power multifunction documenting calibrator that you can use to download procedures, lists, and instructions created with software; or upload data for printing, archiving, and analysis. The powerful built-in HART interface is capable of performing nearly all the day-to-day tasks you now perform with a separate communicator.
In fact, this documenting process calibrator does the work of several tools. It sources, simulates and measures pressure, temperature, and electrical signals with one rugged, hand-held device. For documentation, the 754 automates calibration procedures and captures your data. And, of course, it helps you meet rigorous standards like ISO 9000, FDA, EPA and OSHA regulations. Plus, the new improved graphical screen, Li-Ion battery for longer life, USB port, and accessories help you work smarter and faster.
To create a seamless/paperless calibration management system consider adding Fluke DPCTrack2 Calibration Management software.
Features
Full-featured documenting process calibrator with HART communication for calibrating and troubleshooting HART instrumentation
Measures volts, mA,TDs, thermocouples, frequency, and ohms to test sensors, transmitters and more
Sources/simulates volts, mA, thermocouples, RTDs, frequency, ohms, and pressure to calibrate transmitters
Powers transmitters during test using loop supply with simultaneous mA measurement
Handles fast pulsed rtd transmitters and PLCs, with pulses as short as 1 ms
Creates and runs automated as-found/as-left procedures to satisfy quality programs or regulations, and records and documents results
Holds up to a full week of downloaded procedures and calibration results
Uses many features like autostep, custom units, user-entered values during test, one-point and two-point switch testing, square root DP flow testing, programmable measurement delay and more
Provides easy-to-use multi-lingual interface
Features a bright white dual display for reading both sourced and measured parameters simultaneously
Offers compatibility with many asset management software packages
Multifunctional
Powerful, yet easy to use
Records and documents results
Truly hand-held
Rugged and reliable
Bright white display
Soft keys
Three operating modes
Multi-lingual interface
Built-in algebraic calculator
Programmable measurement delay
Pressure Modules
Covers virtually any pressure application including gauge, differential, dual (compound), absolute, and vacuum.
Display pressure readings in any of 10 different pressure units you specify in the calibrator setup.
Rugged urethane molded cases protect the modules from rough handling and harsh conditions.
Features internal temperature compensation from 0 to 50°C for full accuracy performance.
Includes NIST-traceable calibration certificate.
Modules can be calibrated locally, helping to control costs.
A family of 29 optional pressure modules provides pressure calibration and measurement capabilities. Twenty-eight modules are available, with basic accuracy specs to 0.05%. Ranges start at 0 to 1 in H20 (0 to .25 kPa) and go to 0 to 10,000 psi (0 to 70,000 kPa). Additional information about pressure modules is available on the Pressure Modules Home Page.
Application Selection Guide
Model number
754
721/721Ex
719Pro
719
718
717
700G
3130
2700G
Dead-weight Testers
Application
Calibrating pressure transmitters (field)
●
●
Ideal
●
●
●
●
Calibrating pressure transmitters (bench)
●
●
●
●
●
●
Ideal
●
Calibrating HART Smart transmitters
Ideal
Documenting pressure transmitter calibrations
Ideal
Testing pressure switches in the field
Ideal
●
●
●
●
●
●
Testing pressure switches on the bench
●
●
●
●
●
●
Ideal
Documenting pressure switch tests
Ideal
Testing pressure switches with live (voltage) contacts
HART transmitters are found in confined spaces that are difficult to access, or are out of reach. Helps reduce the need to stand right next to the device being tested or configured so you can work from a safer, more convenient location.
Features
Full HART Device Description (DD) of all HART devices
Configure HART devices
Perform HART trim on HART devices when used with a Fluke 750, or 720 series calibrator
Monitor device PV, SV, TV, QV and other measured HART variables
Quarterly HART DD updates for free
Convenient wireless connectivity to HART modem
Easy to use, fast connect and view HART data
Store HART device configurations
Long range wireless communication up to 250 feet
Complete access to all features of the HART device's DD including methods
Range / Resolution: 0.1 to 10.99, 0.01 to 10.99, 11.00 to 109.99, 110.0 to 1099.9 Hz, 1.100 to 21.999, 22.000 to 50 kHz
2 Year: 0.01, 0.01, 0.1, 0.1 Hz, 0.002, 0.005 kHz
HART, the Highway Addressable Remote Transducer protocol, uses a 1200 baud Frequency Shift Keying (FSK) signal to superimpose digital information on the conventional 4 to 20 mA analog signal.
Why use the HART protocol?
HART is an industry standard developed to define the communications protocol between intelligent field devices and a control system, HART is the most widely used digital communication protocol in the process industry. More than five million HART field instruments are installed in more than 100,000 plants worldwide. The HART protocol:
Is supported by all of the major suppliers of process field instruments supported by the HART Communication Foundation, an industry-wide non-profit organization
Preserves present control strategies
Allows traditional 4 to 20 mA signals and digital communication to share the same two-wire loops
Provides important information for installation and maintenance: Tag IDs, measured values, range and span data, product information and diagnostics
Reduces operation costs by making it easier to manage and fully utilize "smart" instrument network
Fluke 754 HART Documenting Process Calibrator: Get HART-ability
Process plants have taken advantage of smart transmitters, the need for a new generation of calibrators has emerged - calibrators that can communicate via industry standard digital protocols. This process calibrator combines HART communication capability in a documenting process calibrator to deliver an integrated communicating calibrator. This rugged, reliable tool is ideal for calibrating, maintaining, and troubleshooting HART instrumentation. This process calibrator offers:
Integrated HART communication functions, permitting you to monitor, control, and calibrate HART instrumentation
Handling of fast pulsed RTD transmitters and PLCs, with pulses as short as 1 mS
Li-ion battery with 4400 mA hour life and gas gauge
The field calibrator for HART instruments that's both powerful and easy to use
This process calibrator offers the most complete HART implementation of any process calibrator. This process calibrator:
Requires no external box or second tool for everyday HART calibration and maintenance
Offers fast HART communication
Supports popular models of HART transmitters with device-specific command support
Fully complies with the Data Link Layer of the HART protocol, including multiple masters, burst mode,
and multi-drop configurations
Is easy to update as additional instruments are added and new HART versions are released
Is based on the 740 series calibrators, the most rugged, reliable multifunction field calibrators ever made
Is backed by the service and support of the Fluke organization, a member of the HART Communications Foundation
This process calibrator is designed to take on nearly all the day-to-day tasks you now perform with a separate communicator. In fact, it offers many of the communication capabilities of the 475 HART communicator except for the DD interpreter, which can read command set libraries from any HART supplier. This is not necessary for daily HART maintenance.

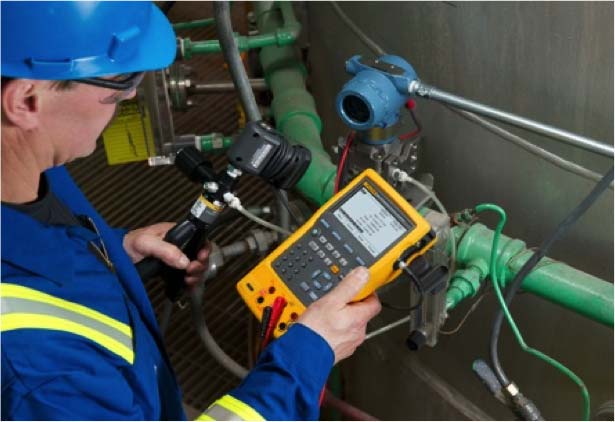

How to calibrate a HART smart pressure transmitter
Pressure transmitter manufacturers have improved the accuracy and technology designed into these smart pressure measurement devices. Many conventional calibration tools have become inadequate or simply unable to test and calibrate these high accuracy pressure transmitters. Better test solutions are required.
Verifying and documenting the performance and adjusting a HART smart pressure transmitter can require a bucket full of tools. Performing this task with a HART enabled calibrator like this process calibrator simplifies the task and reduces what you need to carry.
Before going to the field, install the pressure module adapter to the hand pump with thread seal. Once the adapter is properly installed on the pump, changing modules to different pressure ranges is a snap, no tools required.
To get the accuracy needed to test these new high accuracy transmitters, match the pressure measurement standard range closely to the device tested. For example, use a 100 psi pressure module to calibrate and test a transmitter ranged at 100 psi. Industry standards suggest the measurement standard should be 4 to 10 times more accurate than the device being tested, so best-in-class accuracy is required.
This Documenting Process Calibrator-HART utilizes the 750P series pressure module and has the HART functionality built in to enable smart trims on transmitters. It can also document transmitter performance before and after adjustment and calculate pass/fail errors.
To perform the test:
Isolate the transmitter from the process being measure and its loop wiring. If measuring the mA signal across the transmitter test diode leave the wires intact, but note this method does not give the best mA measurement accuracy.
Connect the mA measurement jacks of this process calibrator to the transmitter.
Connect the pressure module cable to this process calibrator and connect the transmitter test hose from the hand pump to the transmitter.
Press the HART button on the calibrator to see the configuration of the transmitter.
Press HART again and the calibrator will offer the correct measure/source combination for the test. If documenting the calibration press As-Found, input the test tolerance and follow the prompts. If the measured mA signal at the test points is found within tolerance the test is complete. If not, adjustment is required.
Select, adjust, and trim the pressure zero, mA output signal and input sensor.
After adjustment select As-Left, document the condition of the transmitter and after adjustment and if the test passes, it is complete.
HART applications
Fluke 754: The HART calibrator that is easy to use.
Versatile HART protocol support
This process calibrator supports the commands contained in HART protocol version 5.7.
This process calibrator supports a substantial set of HART instructions:
Universal commands - provide functions that are implemented in all field devices, for example, read manufacturer and device type, read primary variable (PV), or read current output and percent of span
Common practice commands - provide functions that are common to many but not all field devices, for example read multiple variables, set damping time, or perform loop test
Device-specific commands - provide functions that are unique to a particular field device, for example sensor trim
Today's 754 supports device-specific instructions for a variety of popular instruments. Additional support may be added periodically with a simple software update available on diskette or via download for a modest upgrade fee.
Manufacturer
Pressure Instruments
Temperature Instruments
Coriolis Instruments
ABB/Kent-Taylor
600T
658T1
ABB/Hartmann & Braun
Contrans P1, AS 800 Series
Endress & Hauser
CERABAR S, CERABAR M, DELTABAR S
TMT 1221, TMT 1821, TMT 1621
Foxboro Eckardt
TI/RTT201
Foxboro/Invensys
I/A Pressure
Fuji
FCX, FCXAZ
FRC
Honeywell
ST3000
STT25T1, STT25H1
Micro Motion
2000, 2000IS, 9701, 9712, 9739
Moore Products
3441
Rosemount
1151, 2088, 3001C, 3051, 3051S
3044C, 644, 3144, 3244, 3144P
Siemens
SITRANS P DS
SMAR
SITRANS P DS, SITRANS P ES
Viatran
LD301
TT3011
Wika
UNITRANS
Yokogawa
EJA
YTA 110, 310 and 320
1Sensor trim not supported
HART Operating Modes Supported
For Point to Point operation, the most commonly used mode, connects this process calibrator to a single HART device in a 4 to 20 mA loop.
In Multi-Drop mode, several HART instruments can be bussed together. This process calibrator searches for each, identifies addresses in use, and allows you to select the instrument for calibration and related operations.
In Burst Mode, the HART instrument transmits bursts of data without waiting to be interrogated by a master unit. This process calibrator can take transmitters out of burst mode during test or calibration, then later restore them to burst mode.

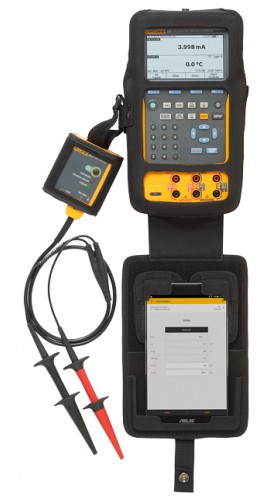

What's included with the Fluke FLUKE-754/154 BU
Documenting Process Calibrator with HART Communication
NIST-Traceable Calibration Report and Data
DPCTrack 2™ Sample Software
3 x Test Probes Sets with Three Sets of "Extended Tooth" Alligator Clips
2 x Hook Clips
USB Communication Cable
HART Communications Cable
Carrying Case
Battery Charger
Battery Pack
Instruction Manual
Three Year Warranty
