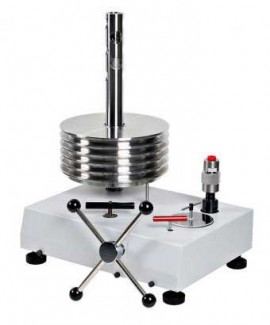

Fluke P3840-MPA Hydraulic Deadweight Tester, 4 to 260mPa

Model: P3840-MPA

With select nominal increments in mPa units, from 4 to 260mPa, this hydraulic deadweight tester is suitable for a wide range of testing applications.

$58,668.00 CAD

2 to 3 Weeks
Need a quote?

This hydraulic tester has mass set that can be trimmed to local gravity FOC.


  • Pressure ranges to 60,000psi (4,000bar)
  • Select from 2 accuracy classes; 0.02% or 0.015% of reading
  • Includes hand pump and intensifier for generating high pressures
  • Tungsten-carbide piston and cylinder provide long-term stability and durability

Application Selection Guide

Fluke 754 Documenting Process Calibrator with HART communication Fluke 721 Dual Sensor Pressure Calibrators Fluke 719PRO Electric Pressure Calibrators Fluke 719 Pressure Calibrator Fluke 718 Series Pressure Calibrators Fluke 717 Series Pressure Calibrators Fluke 700G Series Pressure Test Gauge Fluke 3130-G2M Portable Pneumatic Pressure Calibrators Fluke 2700G Series Pressure Gauges Fluke Deadweight Testers
Model number 754 721/​721Ex 719Pro 719 718 717 700G 3130 2700G Dead-weight Testers
Calibrating pressure transmitters (field) Ideal
Calibrating pressure transmitters (bench) Ideal
Calibrating HART Smart transmitters Ideal
Documenting pressure transmitter calibrations Ideal
Testing pressure switches in the field Ideal
Testing pressure switches on the bench Ideal
Documenting pressure switch tests Ideal
Testing pressure switches with live (voltage) contacts Ideal
Gas custody transfer computer tests Ideal
Verifying process pressure gauges (field) Ideal
Verifying process pressure gauges (bench) Ideal
Logging pressure measurements Ideal
Testing pressure devices using a reference gauge Ideal
Hydrostatic vessel testing Ideal
Leak testing (pressure measurement logging) Ideal
Pressure Calibration Selection Guide

Fluke P3840-MPA Specifications

Pressure Ranges 500 to 30,000psi, or 40 to 2,000bar, or 4 to 200mPa, or 40 to 2,000kgf/cm2
Standard Weight Material Series 3 non-magnetic, austenitic, stainless steel
Weight Density 7.8g/cm3
Piston Material Tungsten carbide with nickel binder
Cylinder Material Tungsten carbide with cobalt binder
Thermal Coefficient of Expansion 11ppm/°C
Test Port Adapters 9/16 - 18 UNF (Autoclave); 3/8 BSP; 1/2 BSP and 3/4 BSP
Reservoir Volume 235cc (14.3in3)
Intensifier Ratio 7 to 1
Seal Materials Nitrile
Operating Fluid Dioctyl Sebacate (DOS), our reference 55-600
Click here for complete specifications on the Fluke P3840-MPA

What's included with the Fluke P3840-MPA

  • Fluke P3840-MPA Hydraulic Deadweight Tester, 4 to 260mPa
